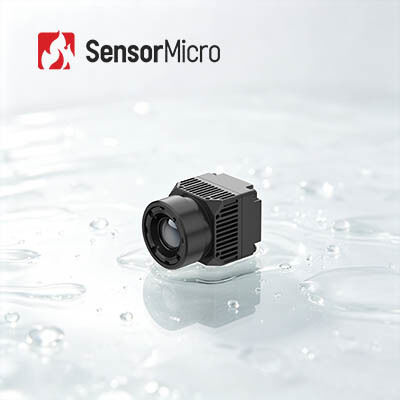

640x512 Resolution 8μm Pixel Size Thermal Camera Module with ±0.5°C Accuracy for Medical Screening
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | RoHS; Reach |
| Model Number | iHA608W |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512/8μm | NETD | ≤30mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Typical Power Consumption | 0.6W |
| Supply Voltage | 5V±0.5 | Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Highlight | Thermal Camera Module 400x300,50mK Thermal Camera Module,25Hz Fever Screening Thermal Camera |
||
Product Description
Elevated Skin Temperature Screening Thermal Camera Module 640x512/8μm
Product Overview
Meet the iHA608W — your reliable thermal solution for non-contact biological temperature testing. Powered by the ApexCore 640×512/8μm elite infrared detector, this module delivers outstanding temperature accuracy up to ±0.5°C. Tailored medical imaging algorithms provide vivid, high-fidelity thermal visuals, pinpointing subtle temperature variations and ensuring consistent, accurate readings.
Thanks to its advanced 8μm small-pixel structure, the hardware achieves a compact footprint without sacrificing performance. Supported by Type-C video interface and USB2.0 data port for plug-and-play integration. Perfectly suited for medical diagnostics, public health screening, livestock monitoring, and various biomedical temperature measurement applications.
Main Features
- Pinpoint Temperature Accuracy: Engineered for non-contact biological temperature monitoring with reliable precision within ±0.5°C
- Delicate Thermal Imaging Quality: Medical professional lenses and proprietary algorithms output high-clarity thermal images
- Ultra-Compact Module: Minimized outline with dimensions of 21×21×31.5 mm and weight of 25±2 g for flexible mounting
- Streamlined Integration: Standard Type-C video & USB2.0 communication interfaces with complete SDK packages for Windows, Android, and Linux
Product Specifications
| Model | iHA608W |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | Vox |
| Resolution | 640×512 |
| Pixel Size | 8μm |
| Spectral Response | 8μm ~14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 25Hz |
| Start-up Time | ≤6s |
| Digital Video | RAW/YUV/TMP |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Image Display | Medical Color/ pseudo-color |
| Temperature Measurement | |
| Working Temperature | 10°C ~ +50°C |
| Measurement Range | 32℃ ~ +42℃ |
| Measurement Accuracy | ±0.5℃ after starting up for 2 minutes (When target temperature range is 32~42℃, and ambient temperature is 23±3℃) |
| Measurement Distance | 0.5m to 5m (temperature measurements at various distances achievable through SDK) |
| Electrical | |
| Standard External Interface | USB (TYPE-C) |
| Communication Interface | USB |
| Digital Video Interface | USB2.0 |
| Supply Voltage | 5V±0.5 |
| Typical Power Consumption | 0.6W |
| Optical Lens | |
| Focal length | 4mm |
| Lens Type | Fixed Focus Athermal |
| F# | 1 |
| FOV (H×V) | 69.2°×55.4° |
| Physical Dimensions | |
| Size (mm) | 21mm×21mm×31.5mm (With 4mm Lens) |
| Weight (g) | 25g±2 (With 4mm Lens) |
| Environmental Adaptability | |
| Operating Temperature | -10℃～+50℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Shock | Half Sine Wave, 40g/11ms, Shock Direction 3-axis, 6-direction |
| ESD | Contact Discharge: 6KV, Air Discharge: 8KV |
| Certification | |
| Environment Protection | ROHS2.0/REACH |
Industrial Applications
The iHA608W thermal camera is widely used in Medical Diagnosis, Disease Screening, Livestock Temperature Measurement, and Home Healthcare.
Company Profile
SensorMicro is the world's leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors along with professional application experience.
We provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capability meets growing demand from all existing and emerging markets.
Frequently Asked Questions
1. What is infrared thermography?
Thermography is a new and effective non-invasive diagnostic technology based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
2. What can infrared thermography be used for?
Infrared thermal imaging can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals, and much more.
3. What are the advantages of infrared thermography?
For non-destructive testing: Simple to test and quick to respond without damage, resulting in cost savings, increased work efficiency, and reduced manpower and equipment depreciation.
For medical thermography: Highly efficient for finding hidden problems in the human body, 100% safe without radiation and pain, making it an ideal tool for early health screening.
