High Resolution Thermal Camera Module 1280x1024 12μm Thermal Imaging Core

I'm Online Chat Now

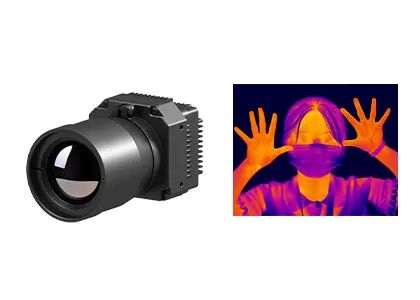

High Resolution Thermal Camera Module 1280x1024 12μm Thermal Imaging Core

High Resolution Thermal Camera Module 1280x1024 12μm Thermal Imaging Core
High Resolution Thermal Camera Module 1280x1024 12μm Thermal Imaging Core

Large Image :  High Resolution Thermal Camera Module 1280x1024 12μm Thermal Imaging Core

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024/12μm NETD: <50mK
Spectral Range: 8~14μm Size: 20x20x10.4mm
High Light:

50mK High Resolution Thermal Camera Module

,

25Hz High Resolution Thermal Camera Module

,

1280x1024 Thermal Imaging Core

PLUG1212 Infrared Camera Module



High Stability 1280x1024 / 12μm Uncooled Infrared Module for Ultra Clear Thermal Imaging



Product Description



PLUG1212 is one of the PLUG series thermal camera modules. PLUG series thermal cores are the most popular infrared products developed by Global Sensor Technology (GST). They are designed to provide clear thermal thermal imaging, best performance together with the most advanced connectivity.



Consisted of 1280x1024 resolution and 12µm pixel size uncooled infrared detector, the PLUG1212 thermal camera core could meet the requirement of detecting, identifying and recognisng targets at long distance.



Due to the standard optical interfaces, PLUG Series infrared products could work on the most demanding applications.



Main Features



- Ultra clear thermal imaging

- Stable performance

- Clear Image Quality & Details

- Strong Environmental Adaptability



Product Specifications



Model PLUG1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Typical Power Consumption <2.0W
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤220g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 19mm/25mm



Industrial Applications



The PLU1212 infrared imaging module is widely used in Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



High Resolution Thermal Camera Module 1280x1024 12μm Thermal Imaging Core 0

Exhibitions



High Resolution Thermal Camera Module 1280x1024 12μm Thermal Imaging Core 1



FAQs



1.What is infrared thermography?

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3.What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
