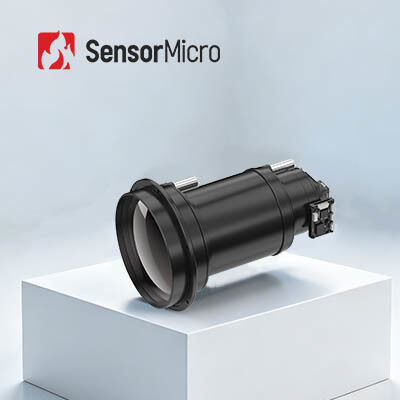

High Resolution 1280x1024 Thermal Camera Module with 12μm Pixel Size and Shutterless Operation for Ultra Clear Imaging

  • High Resolution 1280x1024 Thermal Camera Module with 12μm Pixel Size and Shutterless Operation for Ultra Clear Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE1212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024/12μm NETD ≤30mK
Spectral Range 8~14μm Digital Frame Rate 25Hz/30Hz/50Hz
Image Algorithm NUC/DRC/DNS/DDE/SFFC Extension Components USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Highlight

50mK High Resolution Thermal Camera Module

,

25Hz High Resolution Thermal Camera Module

,

1280x1024 Thermal Imaging Core
Leave a Message
Product Description
High Resolution Thermal Camera Module 1280x1024 12μm Thermal Imaging Core
Product Overview

The iSE1212 is part of the iSE series thermal camera modules, renowned for delivering exceptional infrared imaging performance. Engineered to provide crystal-clear thermal imaging with advanced connectivity, these modules combine superior performance with reliable operation.

Featuring a 1280x1024 resolution and 12μm pixel size uncooled infrared detector, the iSE1212 thermal camera core meets demanding requirements for detecting, identifying, and recognizing targets at extended distances.

With standard optical interfaces, iSE Series infrared products excel in the most challenging applications across various industries.

Key Features
  • High-Definition Imaging with Smooth Visuals - Delivers megapixel thermal imaging with smooth, lag-free performance. Offers wider field of view, larger angle coverage, longer detection range, and enhanced detail.
  • Shutterless Operation for Silent Performance - No shutter calibration required during use, eliminating image stuttering common in traditional designs. Silent operation helps avoid detection by targets.
  • Feature-Rich and Integration-Friendly - Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with wide range of optical lenses and extended components for easy secondary development and flexible system integration.
Technical Specifications


Model iSE1212
IR Detectors Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Effective Pixels 1280×1024
Digital Frame Rate 25Hz/30Hz/50Hz
Start-up Time 7s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Image Brightness Auto/Manual
Image Contrast Auto/Manual
Compensation Mode Manual
Reticle Supported
System Function
Sleep Mode Supported
Menu Setting Customizable
Menu Language Chinese / English
Offset calibration Supported
Keypads ≥4(Button functions customizable)
OLED Driving Support I2C, 16bit/ 24bit Parallel Port, datavalid and other drive screen signals
Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A
Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen.
PC Software
Computer Software Module Control & Video Display
Electrical
Standard External Interface 50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB
Digital Video Interface DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE
Extension Components USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage 2.7V~5.3V
Typical Power Consumption 1.2W@25Hz@23±3℃
Mechanical/Lens
Bare Core Size(mm) 38×39×28 68×69×30.2
Bare Core Weight(g) 65±3 88.5±3
Optical Lens Fixed Focus Athermal: 14mm/19mm/25mm/35mm Fixed Focus Athermal: 50mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Zoom: 15~100mm / 25~75mm / 28~90mm / 30~180mm / 25~225mm / 30~300mm
Shutter Components Optional
Protection Level IP67(Front Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35g, Random Vibration,, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times 500g@1ms
Certification ROHS2.0/REACH
Industrial Applications

The iSE1212 infrared imaging module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and more.

About SensorMicro

Focusing on infrared thermal imaging technology, SensorMicro specializes in providing a comprehensive portfolio of core products, including high-performance cooled and uncooled infrared detectors, thermal modules, and infrared cores. These products serve as the "eyes" of thermal perception, empowering a wide range of industries with reliable and efficient infrared solutions.

Frequently Asked Questions
What is infrared thermography?
Thermography is a new and effective non-invasive diagnostic technology based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
What can infrared thermography be used for?
Infrared thermal imaging can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals, and much more.
What are the advantages of infrared thermography?
For non-destructive testing, it is simple to test and quick to respond without damage, which results in saving costs, increasing work efficiency, and reducing manpower and equipment depreciation. For medical thermography, it is very efficient for finding hidden problems in the human body, 100% safe without radiation and pain, making it an ideal tool for early health screening.
