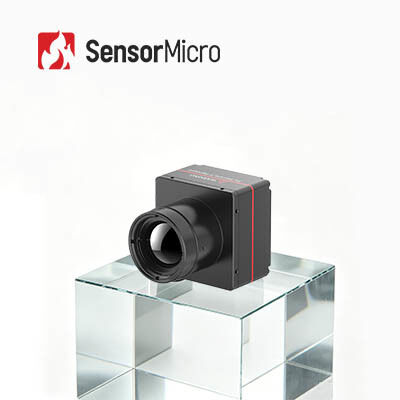

MegaPixel iSE1212 Uncooled Infrared Camera Core with 1280x1024 Resolution 12μm Pixel Size and Shutterless Design
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iSE1212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024/12μm | NETD | ≤30mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Digital Frame Rate | 25Hz/30Hz/50Hz |
| Spectral Response | 8μm ~ 14μm | Digital Zoom | 1x/2x/4x/8x |
| Highlight | MegaPixel Plug Uncooled Infrared Camera,Uncooled Infrared Camera Core |
||
Product Description
MegaPixel iSE1212 Uncooled Infrared Camera Core 1280x1024 / 12μm
MegaPixel 1280x1024 / 12 μm Uncooled Infrared Camera Core for Complex Environments
Product Overview
The iSE1212 is a high-definition uncooled thermal imaging module featuring a 1280x1024 resolution and 12µm pixel size LWIR VOx Microbolometer infrared detector.
Developed using ceramic-packaging detector technology, this megapixel thermal imaging camera core provides wider field of view, longer detection distance, and more detailed target imaging compared to standard products. The shutterless design effectively eliminates image stuttering and noise issues during observation. The iSE1212 supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, electronic zoom, and other advanced features. With multiple video interfaces and lens compatibility, it offers seamless integration and delivers superior imaging performance for high-end infrared applications.
As a supplier of thermal infrared detectors and infrared camera modules with years of industrial application experience, we provide professional, efficient, and convenient solutions across all industries through our core independent R&D infrared detector technology.
Main Features
- High-Definition Imaging with Smooth Visuals - Delivers megapixel thermal imaging with smooth, lag-free performance. Provides wider field of view, larger angle coverage, longer detection range, and enhanced detail.
- Shutterless Operation for Silent Performance - No shutter calibration required during use, eliminating image stuttering common in traditional designs. Silent operation helps avoid detection by targets.
- Feature-Rich and Integration-Friendly - Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with wide range of optical lenses and extended components for easy secondary development and flexible system integration.
Product Specifications
| Model | iSE1212 | |
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 1280×1024 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD | ≤30mK | |
| Image Processing | ||
| Effective Pixels | 1280×1024 | |
| Digital Frame Rate | 25Hz/30Hz/50Hz | |
| Start-up Time | 7s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Image Brightness | Auto/Manual | |
| Image Contrast | Auto/Manual | |
| Compensation Mode | Manual | |
| Reticle | Supported | |
| System Function | ||
| Sleep Mode | Supported | |
| Menu Setting | Customizable | |
| Menu Language | Chinese / English | |
| Offset calibration | Supported | |
| Keypads | ≥4(Button functions customizable) | |
| OLED Driving | Support I2C, 16bit/ 24bit Parallel Port, datavalid and other drive screen signals Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen. |
|
| PC Software | ||
| Computer Software | Module Control & Video Display | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB | |
| Digital Video Interface | DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE | |
| Extension Components | USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 1.2W@25Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size(mm) | 38×39×28 | 68×69×30.2 |
| Bare Core Weight(g) | 65±3 | 88.5±3 |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm | Fixed Focus Athermal: 50mm/100mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 15~100mm / 25~75mm / 28~90mm / 30~180mm / 25~225mm / 30~300mm |
| Shutter Components | Optional | |
| Protection Level | IP67(Front Lens) | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Vibration | 5.35g, Random Vibration,, 3-axis | |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 500g@1ms |
| Certification | ROHS2.0/REACH | |
Industrial Applications
The iSE1212 infrared imaging module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and related fields.
Our Advantages
Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?
SensorMicro thermal camera modules are widely used in many industries such as:
- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
