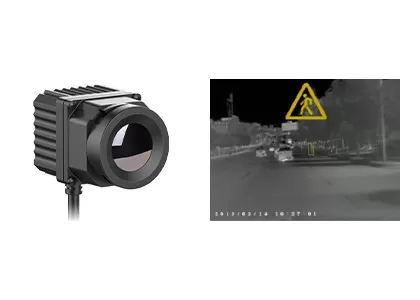

Uncooled VOx Vehicle Mounted Thermal Camera 384x288 with Thermal Imaging

I'm Online Chat Now

Uncooled VOx Vehicle Mounted Thermal Camera 384x288 with Thermal Imaging

Uncooled VOx Vehicle Mounted Thermal Camera 384x288 with Thermal Imaging
Uncooled VOx Vehicle Mounted Thermal Camera 384x288 with Thermal Imaging

Large Image :  Uncooled VOx Vehicle Mounted Thermal Camera 384x288 with Thermal Imaging

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: N-driver 384
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 384x288/17μm NETD: <50mK
Spectral Range: 8~14μm Field Of View: 37°x28°
High Light:

Mini Vehicle Mounted Thermal Camera

,

Vehicle Mounted Thermal Camera 384x288

Brief Introduction



384x288 Vehicle Mounted Thermal Camera for Cars in Night Vision with Thermal Imaging



Product Description



The N-Driver384 vehicle-mounted infrared module carries self-developed 384x288@17μm VOx infrared detector by Global Sensor Technology (GST). It can present infrared thermal imaging during night or bad weather like heavy fog, rains, dusts etc so that the driver will not be in danger due to harsh conditions.



N-Driver384 has a broad application prospect in the fields of automatic driving, vehicle assisted driving (ADAS) and special vehicle applications.



Global Sensor Technology is a supplier of infrared detectors sensors and OEM thermal camera cores. We have more than 10 years of experience in the infrared thermal imaging industries. We have professional after-sales service team to provide customers with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.



Main Features



- Clear Thermal Imaging in Night Vision

- A Great Distance of View

- All-weather Application

- Easy Integration

- High Reliability & Stability



Product Specifications



Model N-Driver 384
IR Detector Performance
Resolution 384x288
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <50mk
Image Display Performance
Focal Length 9.7mm
Field of View 37°×28°
Video Output Format CVBS
Output Image Frame Rate & Resolution PAL 768x576@25Hz
System Features
Start-up Time ≤8s (Room Temperature)
Heater When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself
When the Window Temperature is Higher than 7°C±2°C, Turn off the Heating by Itself
Compensation Algorithm Automatic Shutter Compensation
Image Algorithm Automatic Brightness Contrast/Image Enhancement
Communication Interface RS232, Baud Rate: 115200bps/CAN Communication, Speed 500kbps
Pedestrian/Vehicle Detection /
Electrical Features
Supply Voltage DC9V~32V
Overall Power Consumption ≤3.5W@24V Power Supply, Window Heating is off
≤9W@24V Power Supply, Window Heating is on
Operating Range
Observe Range Person: 1.8m×0.5m ≥150m
Car: 2.3m×2.3m ≥300m
Detect Range /
External Cable Connection
Cable Length 4m
Standard External Interface Power Supply: DC5.5*2.1 Female Connector
Video: RCA Lotus Male Connector
Serial Port: SM 2.54-3P Male Connector (Pin)
Physical Characteristics
Dimension (mm) 40.0x36.0x58.0 (Without Cable)
Weight 150g±3g (Without Cable)
Environmental Adaptation
Operation Temperature -40°C ~ +85°C
Storage Temperature -45°C ~ +90°C
Environmental Test Salt Spray: ISO16750-4; Harsh Level IV
Industrial Solvent: GB/T28046.5-2013
Reliability Test Vibration: ISO16750-3, Grade A
Flame Retardant: GB8410, Grade B
Stone Impact: ISO16750-3, Grade A
ESD: Contact Discharge ±8KV, Air Discharge ±15KV
Package Sealed Case IP67
Certification
EMC EMC Test Certification (ISO10605, ISO11452-4, ISO11452-2, ISO7637-2)



Industrial Applications



The N-driver384 automotive thermal imaging camera is widely used in Advanced Driver Assistance System.



Uncooled VOx Vehicle Mounted Thermal Camera 384x288 with Thermal Imaging 0



Our Advantages



Uncooled VOx Vehicle Mounted Thermal Camera 384x288 with Thermal Imaging 1



FAQs



1. In which industries can the infrared detectors/thermal camera cores be used?



GST thermal camera modules are widely used in many industries such as:

- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
