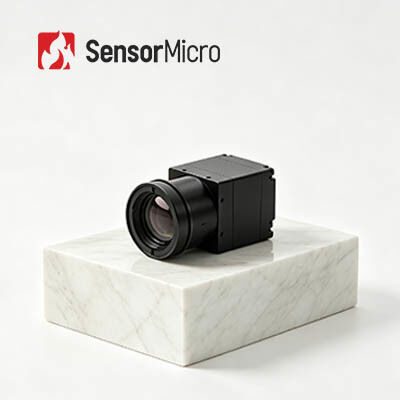

iSE612 Uncooled LWIR Thermal Camera Core with 640x512 Resolution 12μm Pixel Size for Clear Thermal Imaging

  • iSE612 Uncooled LWIR Thermal Camera Core with 640x512 Resolution 12μm Pixel Size for Clear Thermal Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE612
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Type Uncooled Infrared Core Resolution 640x512 / 12μm
Typical Power Consumption 0.8W@50Hz@23±3℃ NETD ≤20mK
Supply Voltage 2.7V~5.3V Communication Interface TTL-232/USB2.0
Highlight

Uncooled LWIR Camera Core

,

LWIR Camera Core 640x512
Leave a Message
Product Description
iSE612 Uncooled LWIR Thermal Camera Core 640x512 12μm with Clear Thermal Imaging
Product Overview

The iSE612 is an uncooled IR thermal camera core from the iSE series. Featuring a 640x512/12μm uncooled infrared detector, comprehensive optical components, signal processing circuitry, and advanced image processing algorithms, this thermal imaging core delivers exceptional image clarity and superior performance.

Designed for versatile applications including Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, and Consumer Electronics.

Main Features
  • Smooth, Stable, and High Cost-effective: No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems. Utilizes high cost-effective ApexCore ceramic-packaging detector with NETD≤20mK.
  • Compact and Lightweight, Flexible for Integration: Dimensions as small as 25.4×25.4×22.7mm, bare core weight ≤26±1.5g. Space-saving structural design allows flexible system layout and integration.
  • Rich Features for Seamless Integration: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with multiple optical lenses and extension components for easy secondary development and system customization.
Product Specifications
Model iSE612
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD

≤20mK
Image Processing
Digital Frame Rate 50Hz
Start-up Time 6s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Compensation Mode Manual
Electrical
Standard External Interface 50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE
Extension Components USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage 2.7V~5.3V
Typical Power Consumption 0.8W@50Hz@23±3℃
Mechanical/Lens
Bare Core Size 25.4×25.4×22.7mm φ36×24.3mm
Bare Core Weight 26±1.5g 28±1.5g
Optical Lens Fixed Focus Athermal: 4.8/9.1/13/19mm
  • Fixed Focus Athermal: 25/35/50/70/100mm
  • Manual Focus: 25/35/50mm
  • Motorized Lens: 75/100/150mm
  • Continuous Zoom: 15~75/20~100/28~90/30~150/30~180/25~225mm
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times 1500g@0.4ms
Vibration

5.35g, Random Vibration, 3-axis
Shutter Components Optional
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Certification ROHS2.0/REACH
Industrial Applications
  • Industrial Vision
  • Firefighting and Rescue
  • Security Surveillance
  • Outdoor Observation
  • Machine Vision
  • Consumer Electronics
Our Advantages
  • Complete Documentation: Product manuals, setup guides, and selection references for immediate implementation.
  • Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification services.
  • Advanced Developer Toolkit: Comprehensive SDKs, APIs, algorithms, and debugging tools for deep integration.
  • Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues.
  • Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What can infrared imaging be used for?
  • Night vision
  • Search & rescue
  • Non-destructive testing
  • Epidemic prevention
  • Thermography
  • Security & monitoring
  • Firefighting
What is the difference between uncooled and cooled IR detectors?

There are currently two types of infrared thermal imaging sensors on the market: cooled and uncooled.

Uncooled IR detectors operate at ambient temperature. Based on semiconductor technology, they can be manufactured in large volumes with small size and low cost, making them ideal for portable/handheld/mobile devices.

Cooled IR detectors are packaged in units that maintain extremely low temperatures using cryo coolers. They are larger, more expensive, and less reliable than uncooled sensors due to complex cooling systems. However, cooled systems offer exceptional sensitivity and typically work with long focal length optics for long-range applications.

What are the advantages of infrared thermography?

For non-destructive testing: Simple to test and quick to respond without causing damage, resulting in cost savings, increased work efficiency, and reduced manpower and equipment depreciation.

For medical thermography: Highly efficient for detecting hidden health issues, 100% safe without radiation or pain, making it an ideal tool for early health screening.
