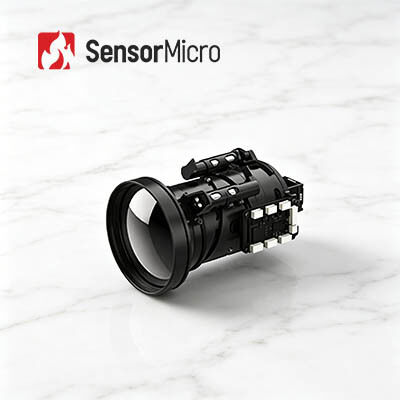

LWIR Thermal Camera Module with 640x512 Resolution and 12μm Pixel Size for Clear Thermal Imaging
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iSE612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Typical NETD | ≤20mK | Digital Frame Rate | 50Hz |
|---|---|---|---|
| Type | Uncooled Camera Module | Image Algorithm | NUC/DRC/DNS/DDE/SFFC |
| Resolution | 640x512 / 12μm | Typical Power Consumption | 0.8W@50Hz@23±3℃ |
| Highlight | Thermal Camera Module 400x300,77g Thermal Camera Module |
||
Product Description
LWIR Thermal Camera Module 640x512 / 12μm with Clear Thermal Imaging
Uncooled LWIR 640x512/12 μm Infrared Camera Module with Clear Thermal Imaging
The iSE612 infrared core stands out with stable imaging capability, economical cost and easy integration performance. Powered by self-developed ApexCore ceramic packaging thermal sensor with 640×512 resolution and 12μm pixel size, it achieves superior thermal detection accuracy and low noise level under NETD≤20mK standard.
Operating without shutter calibration, the device completely avoids intermittent frame stutter, keeping continuous and smooth thermal image output during observation.
Its miniaturized appearance brings prominent advantages in installation and layout. The compact measurement and light bare core weight make it fit perfectly into narrow space of various devices. Reasonable space-saving structure design greatly improves the flexibility of system assembly and overall layout planning.
Rich built-in functions cover multiple practical modes such as super-resolution optimization, picture-in-picture viewing and power-saving sleep mode. It also supports flexible OSD editing and rapid one-click calibration. Perfect compatibility with various display screens, optical lenses and extended accessories facilitates subsequent function expansion and customized development, well meeting diverse market application and equipment matching needs.
Main Features
Smooth, Stable, and High Cost-effective
- No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems
- Adopts high cost-effective ApexCore ceramic-packaging detector, NETD≤20mK
Compact and Lightweight, Flexible for Integration
- Dimensions as small as 25.4×25.4×22.7mm, bare core weight ≤26±1.5g
- Space-saving structural design allows flexible system layout and integration
Rich Features for Seamless Integration
- Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
- Compatible with multiple optical lenses and extension components for easy secondary development and system customization
Product Specifications
| Model | iSE612 | |
|---|---|---|
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 640×512 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD |
≤20mK |
|
| Image Processing | ||
| Digital Frame Rate | 50Hz | |
| Start-up Time | 6s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Compensation Mode | Manual | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB2.0 | |
| Digital Video Interface | DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE | |
| Extension Components | USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size | 25.4×25.4×22.7mm | φ36×24.3mm |
| Bare Core Weight | 26±1.5g | 28±1.5g |
| Optical Lens | Fixed Focus Athermal: 4.8/9.1/13/19mm |
|
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 1500g@0.4ms |
| Vibration |
5.35g, Random Vibration, 3-axis |
|
| Shutter Components | Optional | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Certification | ROHS2.0/REACH | |
Industrial Applications
The iSE612 thermal camera module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics etc.
Your Trusted Partner in Infrared Sensing
Deep Technical Expertise
With many years of experience in the research, development, and application of infrared sensor technology, we have built strong capabilities across chip design, wafer fabrication, packaging and testing, as well as system integration. Our solid foundation enables us to continuously deliver innovative and reliable products that meet evolving market demands.
Focused on Innovation and Practical Implementation in Infrared Sensing
We are committed to driving technological breakthroughs in thermal imaging, constantly pushing the boundaries in NETD, SWaP, and operating temperature. Our products consistently lead in applications across security, industrial monitoring, intelligent systems, and more.
Diversified Product Portfolio
Backed by independent R&D and multiple technical pathways, we offer a comprehensive range of infrared detection components—both cooled and uncooled—providing tailored solutions for a wide variety of industries.
Rigorous Reliability Validation Ensures Quality Assurance
Supported by a robust quality management system, our products undergo multiple testing procedures throughout production to ensure long-term stability and reliability.
Professional Technical Support and Joint Development Services
Our engineering team works closely with customers' R&D and product teams to accelerate system integration, improve efficiency, and shorten time-to-market. Your success is our shared mission.
FAQs
1. What is the difference between uncooled and cooled IR detectors?
There are currently two types of infrared thermal imaging sensors on the market, cooled and uncooled.
Uncooled IR detector operates at ambient temperature. It is based on semi-conductor industry and thus usually can be fabricated in big volume with small size and low cost. Uncooled IR detectors are widely used in portable/handheld/mobile devices.
Cooled IR detectors are packaged in a unit that keeps them at an extremely low temperature which shall be supported by a cryo cooler. They are much bigger, more expensive and less reliable than uncooled sensors, mainly due to the complex cooling systems they require. However, the cooled systems are incredibly sensitive and usually work with long focal length optics to achieve long range mission.
