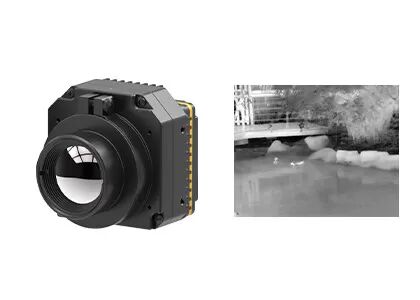

400x300 / 17μm Thermal Camera Core Integrated in Thermal Security Camera for Surveillance

I'm Online Chat Now

400x300 / 17μm Thermal Camera Core Integrated in Thermal Security Camera for Surveillance

400x300 / 17μm Thermal Camera Core Integrated in Thermal Security Camera for Surveillance
400x300 / 17μm Thermal Camera Core Integrated in Thermal Security Camera for Surveillance

Large Image :  400x300 / 17μm Thermal Camera Core Integrated in Thermal Security Camera for Surveillance

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG417
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Camera Module NETD: <30mK
Resolution: 400x300 / 17μm Typical Power Consumption: <1.1W
Frame Rate: 9Hz/25Hz/30Hz/50Hz/60Hz Weight: ≤77g
High Light:

400x300 Thermal Camera Core

,

Thermal Camera Core Personalized Observation

PLUG417 Infrared Module



400x300 / 17μm Thermal Camera Core Integrated in Thermal Security Camera for Surveillance



Product Description



PLUG417 is one of the PLUG series uncooled thermal imaging sensor module developed by Global Sensor Technology (GST).



Consisted of 400x300 / 17µm uncooled thermal imaging sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG417 infrared sensor module ensures clear image, smooth quality and superior performance.



PLUG417 thermal sensor camera module provides a variety of industry common interfaces for the easy plug-in and integration into OME infrared cameras. We have some successful thermal imaging solutions to be applied into many applications.



Global Sensor Technology is a supplier of infrared detectors sensors and OEM thermal camera cores. We have more than 10 years of experience in the infrared thermal imaging industries. We have professional after-sales service team to provide customers with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability



Product Specifications



Model PLUG417
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4.5~6V
Typical Power Consumption <1.1W
Physical Characteristics
Dimension (mm) 44.5mmx44.5mmx36.6mm
Weight ≤77g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm



Industrial Applications



The PLUG417 thermal camera module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.



400x300 / 17μm Thermal Camera Core Integrated in Thermal Security Camera for Surveillance 0



Our Product Line



400x300 / 17μm Thermal Camera Core Integrated in Thermal Security Camera for Surveillance 1

FAQs



1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled infrared detector?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
