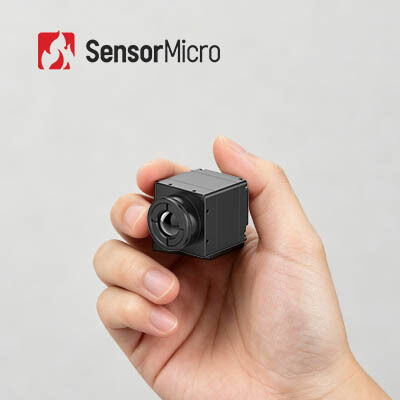

Stable Performance 384x288 Resolution 12μm Pixel Pitch Shutterless Design Uncooled Thermal Camera Core

  • Stable Performance 384x288 Resolution 12μm Pixel Pitch Shutterless Design Uncooled Thermal Camera Core
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE412
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 384x288 / 12μm Typical NETD ≤30mK
Digital Frame Rate 50Hz Start-up Time 6s
Image Algorithm NUC/DRC/DNS/DDE/SFFC Spectral Range 8~14μm LW
Highlight

Stable Performance Thermal Camera Core

,

Thermal Camera Core Uncooled

,

640x512 Uncooled Thermal Camera
Leave a Message
Product Description
Stable Performance Thermal Camera Core Uncooled 384x288 / 12μm
Product Overview

The iSE412 is part of the iSE series uncooled thermal camera sensor modules. Featuring a 384x288 / 12μm uncooled thermal camera sensor, this LWIR thermal camera module delivers clear imaging and superior performance. Beyond standard interfaces for easy OEM integration, we offer personalized customization services to ensure seamless integration into your existing systems.

Our commitment to quality control and assurance in industrial operations, process control, optimization, and monitoring ensures continuous product delivery and prevents production stoppages. Our professional team provides comprehensive after-sales service, with quality, performance, and service forming the cornerstone of our business philosophy.

Main Features
  • Shutterless Design for Smoother Viewing
    • No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems
    • Silent operation ensures discreet use without mechanical noise
  • Compact and Lightweight, Flexible for Integration
    • Total system dimensions as small as 25.4×25.4×22.7 mm, bare core weight ≤26±1.5g
    • Space-saving structural design allows flexible system layout and integration
  • Feature-Rich, Seamless Integration
    • Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
    • Compatible with multiple optical lenses and extension components for easy secondary development and system customization
Product Specifications
Model iSE412
IR Detectors Indicators
Sensitive Material VOx
Resolution 384×288
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Effective Pixels 384×288
Digital Frame Rate 50Hz
Start-up Time 6s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Image Brightness Auto/Manual
Image Contrast Auto/Manual
Compensation Mode Manual
Electrical
Standard External Interface
50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE
Extension Components USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage 2.7V~5.3V
Typical Power Consumption 0.8W@50Hz@23±3℃
Mechanical/Lens
Bare Core Size(mm) 25.4×25.4×22.7 φ36×24.3
Bare Core Weight(g) 26±1.5 28±1.5
Optical Lens
Fixed Focus Athermal: 4.9/9.1/13/19mm
Fixed Focus Athermal: 25mm/35mm
Shutter Components Optional
Vibration 5.35g, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times 1500g@0.4ms
Protection Level IP67(Front Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Certification ROHS2.0/REACH
Industrial Applications

The iSE412 thermal imager module is widely used in:

  • Industrial Vision
  • Firefighting and Rescue
  • Security Surveillance
  • Outdoor Observation
  • Machine Vision
  • Consumer Electronics
Product Advantages
  • Diverse Product Portfolio: A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
  • Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
  • Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.
  • Easy Integration: Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
What is infrared thermal imaging?
Infrared thermal imaging is a method that utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal images showing temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
What can infrared imaging be used for?
  • Night vision
  • Search & rescue
  • Non-destructive test
  • Epidemic prevention
  • Thermography
  • Security & monitoring
  • Firefighting
What is thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens, and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
