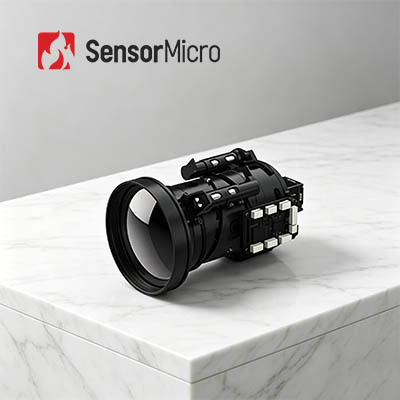

Uncooled Thermal Imaging Camera Module with 640x512/12μm for Machine Vision

  • Uncooled Thermal Imaging Camera Module with 640x512/12μm for Machine Vision
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE612
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 / 12μm Camera Lens Multiple Available
Image Algorithm NUC/DRC/DNS/DDE/SFFC Typical NETD ≤20mK
Spectral Range 8~14μm LW Start-up Time 6s
Highlight

RoHS Thermal Imaging Camera Module

,

640x512 Thermal Imaging Camera Module

,

90g Thermal Imaging Module
Leave a Message
Product Description
Uncooled Thermal Imaging Camera Module 640x512 12μm for Security Surveillance
Product Overview

The iSE612 infrared camera core features an advanced 640×512 12μm thermal detector with high sensitivity, delivering low-noise thermal imaging with NETD performance below 20mK. This shutterless design eliminates routine calibration work and resolves image stuttering issues common in traditional shutter-based systems, ensuring smooth and stable image transmission across all operating conditions.

The streamlined internal structure supports flexible layout and seamless integration into diverse products. Equipped with comprehensive practical functions, the iSE612 supports super-resolution algorithm enhancement, split-screen display, and personalized parameter settings. Excellent compatibility enables effortless pairing with various Micro OLED displays, optical lenses, and expansion components, making it an ideal core component for infrared imaging equipment manufacturing and upgrades.

Main Features
  • Smooth, Stable, and High Cost-effective: No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems. Utilizes cost-effective ApexCore ceramic-packaging detector with NETD≤20mK.
  • Compact and Lightweight, Flexible for Integration: Dimensions as small as 25.4×25.4×22.7mm, bare core weight ≤26±1.5g. Space-saving structural design allows flexible system layout and integration.
  • Rich Features for Seamless Integration: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with multiple optical lenses and extension components for easy secondary development and system customization.
Product Specifications
Model iSE612
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD

≤20mK
Image Processing
Digital Frame Rate 50Hz
Start-up Time 6s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Compensation Mode Manual
Electrical
Standard External Interface 50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE
Extension Components USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage 2.7V~5.3V
Typical Power Consumption 0.8W@50Hz@23±3℃
Mechanical/Lens
Bare Core Size 25.4×25.4×22.7mm φ36×24.3mm
Bare Core Weight 26±1.5g 28±1.5g
Optical Lens Fixed Focus Athermal: 4.8/9.1/13/19mm
  • Fixed Focus Athermal: 25/35/50/70/100mm
  • Manual Focus: 25/35/50mm
  • Motorized Lens: 75/100/150mm
  • Continuous Zoom: 15~75/20~100/28~90/30~150/30~180/25~225mm
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times 1500g@0.4ms
Vibration

5.35g, Random Vibration, 3-axis
Shutter Components Optional
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Certification ROHS2.0/REACH
Industrial Applications

The iSE612 thermal imager module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and more.

Your Trusted Partner in Infrared Sensing
Deep Technical Expertise: With many years of experience in research, development, and application of infrared sensor technology, we have strong capabilities across chip design, wafer fabrication, packaging and testing, and system integration.
Focused on Innovation and Practical Implementation: Committed to driving technological breakthroughs in thermal imaging, constantly pushing boundaries in NETD, SWaP, and operating temperature across security, industrial monitoring, and intelligent systems.
Diversified Product Portfolio: Backed by independent R&D and multiple technical pathways, we offer comprehensive infrared detection components—both cooled and uncooled—providing tailored solutions for various industries.
Rigorous Reliability Validation: Supported by robust quality management systems, our products undergo multiple testing procedures to ensure long-term stability and reliability.
Professional Technical Support: Our engineering team works closely with customers' R&D and product teams to accelerate system integration, improve efficiency, and shorten time-to-market.
Frequently Asked Questions
What are the advantages of uncooled infrared detectors?

Uncooled infrared focal plane detectors operate at room temperature without cooling devices, offering advantages including fast startup, low power consumption, small size, light weight, long lifespan, and low cost.

What are the key considerations for an infrared detector/thermal module for your application?

Key considerations include:

  • The detector resolution
  • The pixel size
  • The NETD
  • The image quality
  • The lens options
  • The power consumption
  • The size and weight
  • The mechanical & electrical interface
  • The budget
