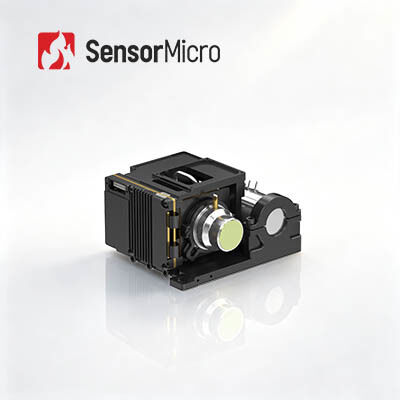

Cooled Infrared Camera Core with 1024×768 Resolution 10μm Pixel and HOT Technology

The GAVIN GC1010HMG infrared camera core integrates a 1024×768/10μm HOT MWIR cooled infrared detector, offering a larger array and smaller pixels compared to the GAVIN GC615HMG, resulting in clearer imaging with finer details. Combined with next-generation image processing algorithms, it delivers stable, high-quality images, while HOT technology enables next-level SWaP optimizations with smaller and lighter design, and low power consumption. The easy-to-integrate infrared camera core supports various digital video interfaces, making it ideal for handheld devices, mobile payloads, and long-duration monitoring in compact integration scenarios where size, energy efficiency, and long-range detection are critical.

• Developed based on a 1024×768/10μm large-format HOT MWIR cooled infrared detector, delivering clear images and wide field of view
• Equipped with next-generation image processing algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for superior image quality
• Smaller 10μm pixel size provides higher spatial resolution and better signal-to-noise ratio

• Supports 150K high-temperature operation, with cooling time ≤ 4min
• Compact size: 87×94×54.5mm, lightweight: 460g

• Supports CameraLink/USB3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces
• Flexible RAW/YUV image output

The GAVIN GC1010HMG cooled thermal core is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.

As a world-leading manufacturer and service provider of infrared detectors, SensorMicro boasts years of profound experience in infrared thermal imaging solutions. Guided by the core philosophy of "SensorMicro, Sense More" and driven by user needs, we are dedicated to unlocking the full potential of infrared technology, delivering high-performance products and professional services to customers worldwide.

Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier; Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment; Thermal imaging doesn't need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don't want to be detected, you can conceal behind glass or walls to block the thermal imaging.
