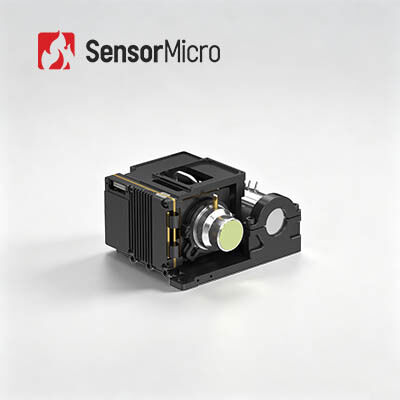

1024×768 Resolution 10μm Pixel Size HOT Technology MWIR Cooled Thermal Camera Core
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC1010HMG |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1024×768 / 10μm | Analog Video | PAL/NTSC |
|---|---|---|---|
| NETD | 20mK(F2); 25mK(F4) | Frame Rate | 50Hz |
| Size | 87×94×54.5mm | Weight | ≤460g |
| Highlight | T2SL Thermal Camera Core,640x512 Thermal Image Sensor Module,900g Thermal Camera Core |
||
Product Description
1024×768/10μm Thermal Camera Core MWIR Cooled HOT Thermal Image Module
Product Overview
The GAVIN GC1010HMG infrared camera core integrates a 1024×768/10μm HOT MWIR cooled infrared detector, offering a larger array and smaller pixels compared to the GAVIN GC615HMG, resulting in clearer imaging with finer details. Combined with next-generation image processing algorithms, it delivers stable, high-quality images, while HOT technology enables next-level SWaP optimizations with smaller and lighter design, and low power consumption. The easy-to-integrate infrared camera core supports various digital video interfaces, making it ideal for handheld devices, mobile payloads, and long-duration monitoring in compact integration scenarios where size, energy efficiency, and long-range detection are critical.
Main Features
Superior Quality with Larger FPA and Smaller Pixel Size
- Developed based on a 1024×768/10μm large-format HOT MWIR cooled infrared detector, delivering clear images and wide field of view
- Equipped with next-generation image processing algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for superior image quality
- Smaller 10μm pixel size provides higher spatial resolution and better signal-to-noise ratio
SWaP Optimization Leading by HOT Technology
- Supports 150K high-temperature operation, with cooling time ≤ 4min
- Compact size: 87×94×54.5mm, lightweight: 460g
Rich Interfaces, Easy Integration
- Supports CameraLink/USB3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces
- Flexible RAW/YUV image output
Product Specifications
| Model | GAVIN GC1010HMG HOT MWIR Cooled Infrared Camera Core |
|---|---|
| Indicators | |
| Resolution | 1024×768 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F2) 25mK(F4) |
| Image Processing | |
| Frame Rate | 50Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Analog Video | PAL/NTSC |
| Digital Video | Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤8W |
| Cooling Time(23℃) | ≤4min |
| Size(mm) | 87×94×54.5 |
| Weight(g) | ≤460 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 25mm/F2 |
Industrial Applications
The GAVIN GC1010HMG thermal imaging module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.
About SensorMicro
SensorMicro is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.
SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems--empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of SensorMicro enables it to meet the growing demand from all existing and emerging markets.
Frequently Asked Questions
What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.
What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
