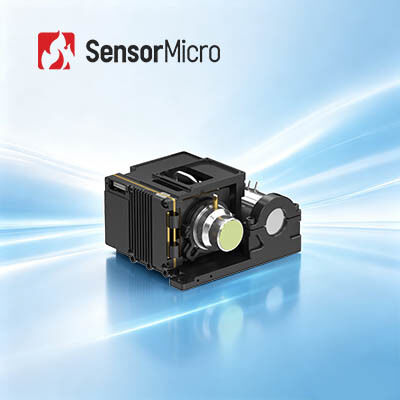

GAVIN GC1010HMG Cooled HOT Thermal Camera Core with 1024×768 Resolution and 10μm MWIR Infrared Detector
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC1010HMG |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1024×768 / 10μm | NETD | 20mK(F2); 25mK(F4) |
|---|---|---|---|
| Spectral Range | 3.7~4.8μm MW | Frame Rate | 50Hz |
| Size | 87×94×54.5mm | Weight | ≤460g |
| Highlight | GAVIN615B Thermal Camera Core,640x512 MWIR Camera Module,MCT Thermal Camera Core |
||
Product Description
GAVIN GC1010HMG Cooled HOT Thermal Camera Core with 1024×768 Resolution and 10μm MWIR Infrared Detector
Product Overview
The GAVIN GC1010HMG infrared camera core integrates a 1024×768/10μm HOT MWIR cooled infrared detector, offering a larger array and smaller pixels compared to the GAVIN GC615HMG, resulting in clearer imaging with finer details. Combined with next-generation image processing algorithms, it delivers stable, high-quality images, while HOT technology enables next-level SWaP optimizations with smaller and lighter design, and low power consumption. The easy-to-integrate infrared camera core supports various digital video interfaces, making it ideal for handheld devices, mobile payloads, and long-duration monitoring in compact integration scenarios where size, energy efficiency, and long-range detection are critical.
Main Features
- Superior Quality with Larger FPA and Smaller Pixel Size
- Developed based on a 1024×768/10μm large-format HOT MWIR cooled infrared detector, delivering clear images and wide field of view
- Equipped with next-generation image processing algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for superior image quality
- Smaller 10μm pixel size provides higher spatial resolution and better signal-to-noise ratio
- SWaP Optimization Leading by HOT Technology
- Supports 150K high-temperature operation, with cooling time ≤ 4min
- Compact size: 87×94×54.5mm, lightweight: 460g
- Rich Interfaces, Easy Integration
- Supports CameraLink/USB3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces
- Flexible RAW/YUV image output
Product Specifications
| Model | GAVIN GC1010HMG HOT MWIR Cooled Infrared Camera Core |
| Resolution | 1024×768 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F2) 25mK(F4) |
| Frame Rate | 50Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Analog Video | PAL/NTSC |
| Digital Video | Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤8W |
| Cooling Time(23℃) | ≤4min |
| Size(mm) | 87×94×54.5 |
| Weight(g) | ≤460 |
| Operating Temperature | -40℃~+71℃ |
| Lens Options | Fixed focus: 25mm/F2 |
Industrial Applications
The GAVIN GC1010HMG thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.
About SensorMicro
SensorMicro is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.
SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems--empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of SensorMicro enables it to meet the growing demand from all existing and emerging markets.
Frequently Asked Questions
What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.
How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
