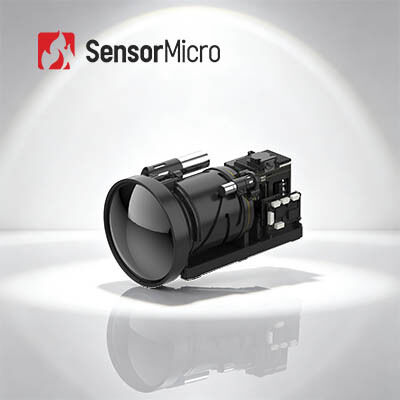

640×512 Resolution 15μm Pixel Size HOT MWIR Thermal Imaging Module with Compact Design
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC615HMG |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 / 15μm | NETD | 20mK(F4) |
|---|---|---|---|
| Spectral Range | 3.7μm±0.2μm～4.8μm±0.2μm | Frame Rate | 50Hz (F4) / 30Hz (F5.5) |
| Size | 71×55×84mm | Weight | ≤350g |
| Highlight | RS058 Thermal Camera Core,680g Cooled Infrared Detector Integration,640x512 Thermal Camera Core |
||
Product Description
640*512/15μm Large-format HOT MWIR Thermal Imaging Module
Product Overview
The GAVIN GC615HMG infrared camera core integrates a 640*512/15μm HOT MWIR cooled infrared detector with next-generation image processing algorithms. The HOT technology enables not only high-quality and stable imaging, but also compact size, lightweight design, and low power consumption, delivering optimized SWaP performance for versatile applications. With broad compatibility across multiple digital video interfaces and easy secondary development, it is suitable for handheld devices, mobile payloads, and long-duration monitoring, meeting stringent requirements for compact size, energy efficiency, and long-range detection in various infrared integration scenarios.
Main Features
- Mainstream FPA, Clear Imaging
- Developed based on a 640*512/15μm large-format HOT MWIR cooled infrared detector, offering excellent versatility
- Equipped with next-generation image processing algorithms, including DRC, 2D/3D noise reduction, and edge enhancement (EE), delivering clearer images
- HOT Technology Leading SWaP Optimization
- Supports high-temperature operation up to 150K, with cooling time ≤ 3min30s
- Compact size: 71*55*84 mm, weight: 350g, power consumption: 7W
- Rich Interfaces, Easy Integration
- Supports CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces
- Flexible RAW/YUV image output
Product Specifications
| Model | GAVIN GC615HMG |
|---|---|
| Performance | |
| Resolution | 640*512 |
| Pixel Size | 15μm |
| Cryocooler | RS058 |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F4) |
| Image Processing | |
| Frame Rate | 50Hz (F4) / 30Hz (F5.5) |
| Digital Zoom | 1* to 8* continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Analog Video | PAL/NTSC |
| Digital Video | Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤7W |
| Cooling Time(23℃) | ≤3min30s |
| Size(mm) | 71*55*84 |
| Weight(g) | ≤350 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 25mm/F2 Continuous zoom: 18~275mm/F5.5 110~1100mm/F5.5 15~300mm/F4 23~450mm/F4 |
Industrial Applications
The GAVIN GC615HMG thermal imaging module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.
Our Product Line
- High sensitivity and excellent performance
- World-leading technology in infrared industry
- Various infrared detectors available - both uncooled and cooled IR detectors in different formats and pixel sizes
- Volume production to ensure fast delivery - three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
-
How to choose proper infrared detector resolution?
It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 400x300. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024. -
How to select right pseudo color for thermal imaging?
- The gray white is more suitable for the target with small temperature difference
- The red and blue is more suitable for the scene where the problem points need to be found
- The iron red is the standard color palette of the power industry
Note: no matter which palette you choose, the thermal temperature will not change at all -
How to choose a suitable infrared thermal camera lens?
- Standard lens can meet normal targets with appropriate distance
- For the telephoto lens, it's suitable for targets that is relatively small and needs to be viewed from a long distance
- To see more detail of objects at close distance, wide angle lens is better
- Macro lens is for seeing very tiny target with close distance, such as chip circuit
