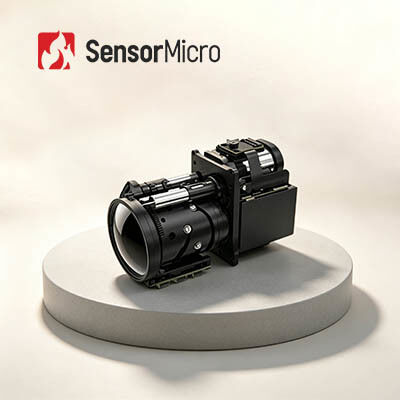

640x512 Resolution 15μm Pixel Size MCT MWIR Camera Core Cooled Infrared Detector with Fast Integration
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC615HMG |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 / 15μm | Cryocooler | RS058 |
|---|---|---|---|
| NETD | 20mK(F4) | Spectral Range | 3.7~4.8μm |
| Size | 71×55×84mm | Weight | ≤350g |
| Highlight | 640x512 MWIR Camera Core,MCT MWIR Camera Core,MWIR Cooled Infrared Detector |
||
Product Description
15μm 640x512 MCT MWIR Camera Core Cooled Infrared Detector Fast Integration
Product Overview
The GAVIN GC615HMG infrared camera core integrates a 640×512/15μm HOT MWIR cooled infrared detector with next-generation image processing algorithms. The HOT technology enables high-quality stable imaging while delivering optimized SWaP performance with compact size, lightweight design, and low power consumption.
We specialize in the design, manufacture, and marketing of thermal imaging detectors and infrared modules, providing comprehensive infrared thermal imaging solutions that shorten development time and reduce costs for our customers.
Main Features
- Mainstream FPA, Clear Imaging - Developed with 640×512/15μm large-format HOT MWIR cooled infrared detector for excellent versatility
- Advanced Image Processing - Equipped with next-generation algorithms including DRC, 2D/3D noise reduction, and edge enhancement for superior image clarity
- HOT Technology for SWaP Optimization - Supports high-temperature operation up to 150K with cooling time ≤ 3min30s
- Compact Design - Dimensions: 71×55×84 mm, weight: 350g, power consumption: 7W
- Rich Interface Support - CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces with flexible RAW/YUV image output
Product Specifications
| Model | GAVIN GC615HMG HOT MWIR Cooled Infrared Camera Core |
|---|---|
| Performance |
Resolution: 640×512 Pixel Size: 15μm Cryocooler: RS058 Spectral Response: 3.7μm±0.2μm～4.8μm±0.2μm IR Detector NETD(23℃): 20mK(F4) |
| Image Processing |
Frame Rate: 50Hz (F4) / 30Hz (F5.5) Digital Zoom: 1× to 8× continuous digital zoom Image Direction: Horizontally/Vertically/Diagonally Flip Image Algorithm: DRC, 2D/3D Image Noise Reduction, EE |
| Electrical |
Analog Video: PAL/NTSC Digital Video: Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber External Sync: Standard: LV-TTL, Option: RS422/LVDS Communication: Standard: USB2.0/LV-TTL, Option: RS422/CAN/USB3.0/GigE |
| Power & Physical |
Power Supply: 12V±1V Steady Power Consumption(23℃): ≤7W Cooling Time(23℃): ≤3min30s Size: 71×55×84 mm Weight: ≤350g Operating Temperature: -40℃~+71℃ |
| Optical Lens Options |
Fixed focus: 25mm/F2 Continuous zoom: 18~275mm/F5.5, 110~1100mm/F5.5, 15~300mm/F4, 23~450mm/F4 |
Industrial Applications
The GAVIN GC615HMG thermal imaging module is widely used in NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, and various other industrial applications.
Your Trusted Partner in Infrared Sensing
- Deep Technical Expertise - Years of experience in infrared sensor technology with capabilities across chip design, wafer fabrication, packaging, testing, and system integration
- Focused on Innovation - Committed to technological breakthroughs in thermal imaging, pushing boundaries in NETD, SWaP, and operating temperature
- Diversified Product Portfolio - Comprehensive range of infrared detection components including both cooled and uncooled solutions
- Rigorous Reliability Validation - Robust quality management system with multiple testing procedures ensuring long-term stability
- Professional Technical Support - Engineering team works closely with customers to accelerate system integration and shorten time-to-market
Frequently Asked Questions
1. What is infrared thermal imaging?
Infrared thermal imaging utilizes infrared radiation and thermal energy to gather information about objects. By detecting radiation differences between objects and their background environment, as well as variations within objects themselves, infrared thermal images display radiation fluctuations that reveal scene characteristics.
2. What are the advantages of infrared thermal imaging?
- See through total darkness
- Identification under camouflage
- Long range detection
- Heat distribution detection
- Non-contact temperature measurement
- Occupation awareness
3. What are the applications of infrared thermal imaging?
Temperature measurement and all-weather imaging are the two basic functions of infrared thermal imaging technology. Products developed using these technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment, and other traditional fields.
