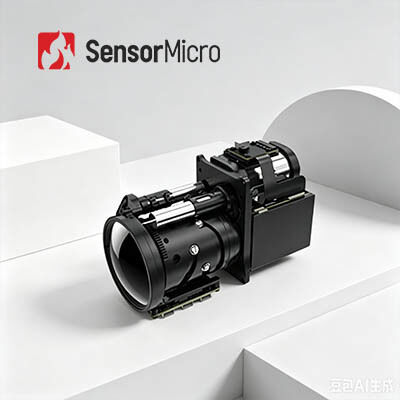

640×512 Resolution 15μm Pixel Size HOT MWIR Infrared Camera Module for Fast Integration
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC615HMG |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512/ 15μm | High Sensitivity | 20mK(F4) |
|---|---|---|---|
| Power Consumption | ≤7W | Spectral Range | 3.7~4.8μm MW |
| Size | 71×55×84mm | Weight | ≤350g |
| Highlight | 1280x1024 Mct Ir Detector,5V Mct Ir Detector |
||
Product Description
640×512/15μm HOT MWIR Infrared Camera Module for Fast Integration
Product Overview
The GAVIN GC615HMG infrared camera core integrates a 640×512/15μm HOT MWIR cooled infrared detector with next-generation image processing algorithms. The HOT technology enables not only high-quality and stable imaging, but also compact size, lightweight design, and low power consumption, delivering optimized SWaP performance for versatile applications.
Main Features
- Mainstream FPA, Clear Imaging
- Developed based on a 640×512/15μm large-format HOT MWIR cooled infrared detector, offering excellent versatility
- Equipped with next-generation image processing algorithms, including DRC, 2D/3D noise reduction, and edge enhancement (EE), delivering clearer images
- HOT Technology Leading SWaP Optimization
- Supports high-temperature operation up to 150K, with cooling time ≤ 3min30s
- Compact size: 71×55×84 mm, weight: 350g, power consumption: 7W
- Rich Interfaces, Easy Integration
- Supports CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces
- Flexible RAW/YUV image output
Product Specifications
| Model | GAVIN GC615HMG |
|---|---|
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Cryocooler | RS058 |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F4) |
| Image Processing | |
| Frame Rate | 50Hz (F4) / 30Hz (F5.5) |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Analog Video | PAL/NTSC |
| Digital Video | Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤7W |
| Cooling Time(23℃) | ≤3min30s |
| Size(mm) | 71×55×84 |
| Weight(g) | ≤350 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | Fixed focus: 25mm/F2 Continuous zoom: 18~275mm/F5.5 110~1100mm/F5.5 15~300mm/F4 23~450mm/F4 |
Industrial Applications
The GAVIN GC615HMG thermal imaging module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.
Our Advantages
- Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
- On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
- Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
