PLUG-R Series Infrared Camera Core Uncooled Thermal Camera Module 400x300 / 17μm

I'm Online Chat Now

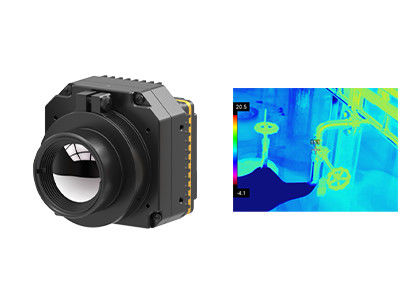

PLUG-R Series Infrared Camera Core Uncooled Thermal Camera Module 400x300 / 17μm

PLUG-R Series Infrared Camera Core Uncooled Thermal Camera Module 400x300 / 17μm
PLUG-R Series Infrared Camera Core Uncooled Thermal Camera Module 400x300 / 17μm

Large Image :  PLUG-R Series Infrared Camera Core Uncooled Thermal Camera Module 400x300 / 17μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG417R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 400x300 / 17μm Temperature Measurement Range: -20℃~550℃
NETD: <30mK Spectral Range: 8~14μm
Size: 44.5x44.5x33.6mm Weight: ≤77g
High Light:

400x300 Infrared Camera Core

,

Uncooled Thermal Camera Module

,

17μm Infrared Camera Core

PLUG417R Thermal Imaging Module



GST PLUG-R Series 400x300 / 17μm Uncooled Thermal Imaging Camera Core for Infrared Camera



Product Description



PLUG417R is one of the PLUG-R series uncooled thermal IR camera modules developed by Global Sensor Technology (GST). It consists of 400x300 / 17μm uncooled infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.



PLUG417R is a kind of uncooled infrared thermal imaging module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image with a temperatue measurement range from -20℃~550℃.



PLUG417R thermal module can be integrated into many terminal products that needs the infrared thermal imaging technology and is applied in the filed of thermograhy, electricity power inspection, machine vision, building inspection, petrochemicals etc.



Main Features


- Detector Resolution: 400x300 / 17μm

- Detector Material: Vanadium Oxide

- NETD<30mk, High Sensitivity
- Frame Rate: 25Hz/30Hz/50Hz/60Hz
- Size: 44.5x44.5x36.6

- Weight: ≤77g



Product Specifications



Model PLUG417R
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time <15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4.5~6V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight ≤77g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm



Industrial Applications



The PLUG417R infrared module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



PLUG-R Series Infrared Camera Core Uncooled Thermal Camera Module 400x300 / 17μm 0



About GST Infrared Team



PLUG-R Series Infrared Camera Core Uncooled Thermal Camera Module 400x300 / 17μm 1



FAQs



1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled infrared detector?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
