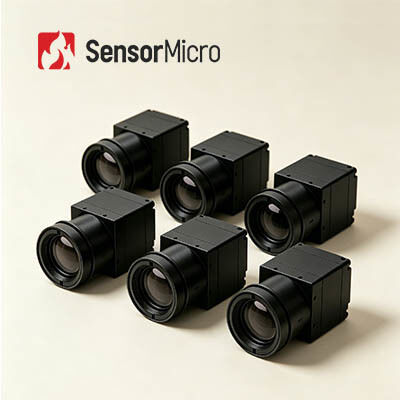

iSE Series Stable Performance 640x512 Resolution 12μm Pixel Pitch Uncooled Thermal Camera Module
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iSE612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Digital Frame Rate | 50Hz | Typical NETD | ≤20mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Resolution | 640x512 / 12μm |
| Digital Zoom | 1x/2x/4x/8x | Supply Voltage | 2.7V~5.3V |
| Highlight | 400x300 Infrared Camera Core,Uncooled Thermal Camera Module,17μm Infrared Camera Core |
||
Product Description
iSE Series Infrared Camera Core Uncooled Thermal Camera Module 640x512/12μm
Product Overview
The iSE612 is an uncooled thermal IR camera module from the iSE series, featuring a 640x512/12μm uncooled infrared detector, comprehensive optical components, professional signal processing circuitry, and advanced image processing algorithms.
Featuring smooth imaging, stable operation and favorable cost performance, the iSE612 thermal camera core is equipped with self-independent ApexCore 640×512 12μm ceramic-packaging thermal detector. Excellent sensor performance brings low-noise thermal images, and NETD≤20mK reflects outstanding temperature distinguishing capacity.
Key Features
- Smooth, Stable & High Cost-effective: No shutter calibration required during operation, eliminating image stuttering. Utilizes high cost-effective ApexCore ceramic-packaging detector with NETD≤20mK
- Compact & Lightweight: Dimensions as small as 25.4×25.4×22.7mm, bare core weight ≤26±1.5g. Space-saving structural design enables flexible system integration
- Rich Feature Set: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
- Flexible Integration: Compatible with multiple optical lenses and extension components for easy secondary development and system customization
Technical Specifications
| Model | iSE612 | |
|---|---|---|
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 640×512 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD |
≤20mK |
|
| Image Processing | ||
| Digital Frame Rate | 50Hz | |
| Start-up Time | 6s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Compensation Mode | Manual | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB2.0 | |
| Digital Video Interface | DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE | |
| Extension Components | USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size | 25.4×25.4×22.7mm | φ36×24.3mm |
| Bare Core Weight | 26±1.5g | 28±1.5g |
| Optical Lens | Fixed Focus Athermal: 4.8/9.1/13/19mm |
|
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 1500g@0.4ms |
| Vibration |
5.35g, Random Vibration, 3-axis |
|
| Shutter Components | Optional | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Certification | ROHS2.0/REACH | |
Industrial Applications
- Industrial Vision
- Firefighting and Rescue
- Security Surveillance
- Outdoor Observation
- Machine Vision
- Consumer Electronics
Company Capabilities
- High sensitivity and excellent performance
- World-leading technology in infrared industry
- Various infrared detectors available - both uncooled and cooled IR detectors in different formats and pixel sizes
- Volume production to ensure fast delivery - three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
How does uncooled focal plane array microbolometer work?
By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.
What's the advantage of uncooled infrared detector?
Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
