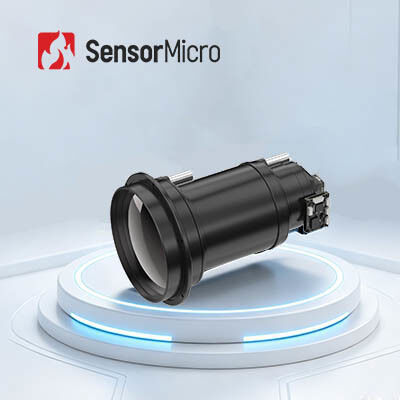

High Sensitivity 1280x1024 Resolution 12μm Pixel Size Uncooled Thermal Camera Module

  • High Sensitivity 1280x1024 Resolution 12μm Pixel Size Uncooled Thermal Camera Module
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE1212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024/12μm NETD ≤30mK
Spectral Range 8~14μm Digital Frame Rate 25Hz/30Hz/50Hz
Image Brightness Auto/Manual Communication Interface TTL-232/USB
Highlight

Lightweight High Resolution Thermal Camera Module

,

ROHS High Resolution Thermal Camera Module
Leave a Message
Product Description
High Sensitivity MegaPixel Uncooled Thermal Camera Module 1280x1024 12μm
Product Overview

iSE1212 is one of the iSE series uncooled infrared camera modules. It is based on a 1280x1024/12μm uncooled infrared detector with professional signal processing circuit and image processing platform.

With large array 1280x1024 resolution, the iSE1212 uncooled thermal module presents more image details and supports larger field of view. The reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission.

We are a supplier of thermal infrared detectors and infrared camera modules. After years of industrial application experience, we provide professional, efficient and convenient solutions for customers in all industries with our core technology of independent R&D infrared detector.

Main Features
  • High-Definition Imaging with Smooth Visuals: Delivers megapixel thermal imaging with smooth, lag-free performance. Wider field of view, larger angle coverage, longer detection range, and enhanced detail.
  • Shutterless Operation for Silent Performance: No shutter calibration required during use, eliminating image stuttering common in traditional designs. Silent operation helps avoid detection by targets.
  • Feature-Rich and Integration-Friendly: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with a wide range of optical lenses and extended components, enabling easy secondary development and flexible system integration.
Product Specifications


Model iSE1212
IR Detectors Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Effective Pixels 1280×1024
Digital Frame Rate 25Hz/30Hz/50Hz
Start-up Time 7s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Image Brightness Auto/Manual
Image Contrast Auto/Manual
Compensation Mode Manual
Reticle Supported
System Function
Sleep Mode Supported
Menu Setting Customizable
Menu Language Chinese / English
Offset calibration Supported
Keypads ≥4(Button functions customizable)
OLED Driving Support I2C, 16bit/ 24bit Parallel Port, datavalid and other drive screen signals
Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A
Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen.
PC Software
Computer Software Module Control & Video Display
Electrical
Standard External Interface 50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB
Digital Video Interface DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE
Extension Components USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage 2.7V~5.3V
Typical Power Consumption 1.2W@25Hz@23±3℃
Mechanical/Lens
Bare Core Size(mm) 38×39×28 68×69×30.2
Bare Core Weight(g) 65±3 88.5±3
Optical Lens Fixed Focus Athermal: 14mm/19mm/25mm/35mm Fixed Focus Athermal: 50mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Zoom: 15~100mm/25~75mm/28~90mm/30~180mm/25~225mm/30~300mm
Shutter Components Optional
Protection Level IP67(Front Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35g, Random Vibration,, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times 500g@1ms
Certification ROHS2.0/REACH
Industrial Applications

The iSE1212 infrared imaging module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and more.

Our Advantages
  • High sensitivity and excellent performance: World-leading technology in infrared industry
  • Various infrared detectors available: Both uncooled and cooled IR detectors in different formats and pixel sizes
  • Volume production to ensure fast delivery: Three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.
What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation. For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
