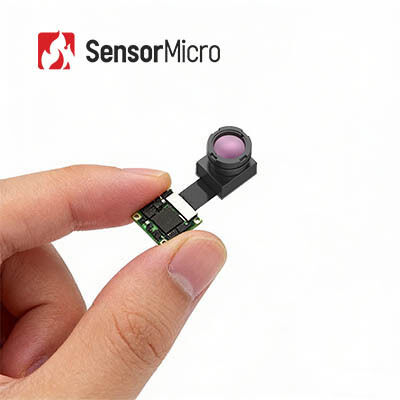

256x192 Resolution 12μm Pixel Size Uncooled Infrared Thermal Camera Module for Night Observation
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | Mini212G2 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 256x192/12μm | NETD | ≤50mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Analog Video Interface | CVBS (PAL/NTSC) |
| Output Data | 14bit Raw | Supply Voltage | 3.3V±0.1V |
| Highlight | 384x288 Vehicle Mounted Thermal Imaging Camera System,CVBS Vehicle Mounted Thermal Imaging Camera System |
||
Product Description
256x192 / 12μm Uncooled Infrared Thermal Camera Module for Night Observation
The Mini212G2 infrared camera module, with its miniature size, high-performance wafer-level packaging 256x192 / 12μm uncooled infrared detector, and broad compatibility, is well-positioned to meet the growing demands of emerging markets. It not only provides reliable thermal sensing and imaging capabilities for various applications but also offers advantages such as easy integration, low cost, and stable performance, making it a preferred choice for developers and manufacturers in AIoT, Machine Vision, Industrial Vision, Security Monitoring, and Night Observation fields.
Main Features
Miniature Module with Direct Thermal Imaging Output
- Equipped with a self-developed 256×192/12μm wafer-level infrared detector, offering significant cost advantages
- Ultra-compact structural design: only 17×17mm (PCBA) in size, weighing as low as 4g -- ideal for space-constrained applications
- Integrated ISP processing board and next-gen image algorithms deliver clear thermal images directly, ensuring strong versatility
Precise Detection, Flexible Configuration
- High-precision temperature measurement with accuracy up to ±2℃; supports spot, area, and full-frame measurement
- Multiple field-of-view lens options available to meet various observation requirements
Rich Interfaces for Easy Integration
- Offers USB2.0 / MIPI / DVP / BT.656 / LVDS and other digital video output interfaces
- Fully compatible with industry-standard interfaces
Product Specifications
| Model | Mini212G2 |
|---|---|
| Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Response | 8~14μm |
| NETD | ≤50mK |
| Output Data | 14bit Raw |
| Frame Rate | Thermography: 25Hz, Imaging: 50Hz |
| Focus Mode | Focus Free |
| Lens(HFOV/FL) | 17.5°/10mm | 25°/ 7mm | 56°/ 3.2mm | 90°/ 2.1mm |
| Weight(g) | 7.1 | 6.4 | 4 | 6.8 |
| PCBA Size(mm) | 17×17 |
| Digital Video Interface | USB2.0 / MIPI / DVP / BT.656 / LVDS |
| Analog Video Interface | CVBS(PAL/NTSC) |
| Operating Voltage | 3.3V±0.1V |
| Typical Power Consumption | 330mW |
| Temperature Measurement Range | -20℃~+550℃(-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Operating Temperature | -40℃~+70℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | RoHS 2.0 / Reach |
Industrial Applications
This product is positioned for fields such as AIoT, Machine Vision, Industrial Vision, Security Monitoring, and Night Observation.
AIoT Applications: Perfectly suitable for integration into compact AIoT devices such as smart home appliances, wearable devices, and intelligent environmental monitors.
Industrial Vision: Can be used for real-time monitoring of industrial equipment, laser processing and welding scenarios, semiconductor detection, and more.
Security Monitoring: Can detect illegal intruders and trigger real-time alarms for enhanced security applications.
Our Product Line
High Sensitivity and Excellent Performance: World-leading technology in infrared industry
Various Infrared Detectors Available: Both uncooled and cooled IR detectors in different formats and pixel sizes
Volume Production to Ensure Fast Delivery: Three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
