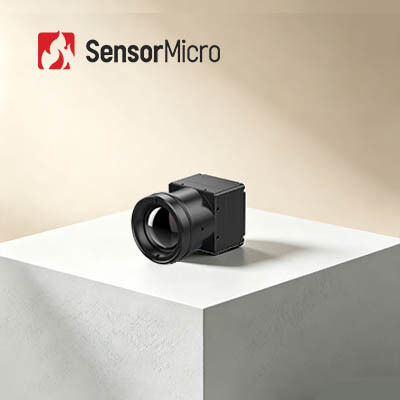

Lightweight 384x288 Uncooled Thermal Module with 17μm VOx Microbolometer and 0.65W Low Power Consumption

COIN417G3 infrared thermal camera module adopts 17μm VOx microbolometer technology. It integrates 384x288 / 17μm wafer level package (WLP) infrared thermal detector, high performance signal processing circuit and image processing algorithm.

COIN417G3 infrared camera module provides a standard set of interfaces for integrators, which can be easily integrated into many kinds of devices like helmet, security camera as well as police and firefighting units. It is beneficial for OEM integrators to start secondary development and integration in all kinds of thermal imagers and infrared thermographic cameras.

• Compact size, light weight
• Suitable for various infrared products
• A wide range of thermal imaging applications
• Low Power Consumption
• High sensitivity with a typical NETD≤30mK

The COIN417G3 infrared camera module is widely used in Industrial Vision, Security Monitoring, Firefighting & rescue, Outdoors, Machine Vision, ADAS etc.

Diverse Product Portfolio: A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.

Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.

Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability--designed to perform under a wide range of environmental challenges.

Easy Integration: Multiple interface options make integration straightforward and enable rapid development across multiple application fields.

• What is the difference between low light, active IR and thermal imaging?
  Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier. Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment. Thermal imaging doesn't need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. It is not affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.
• Can you block thermal imaging?
  In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don't want to be detected, you can conceal behind glass or walls to block the thermal imaging.
