Uncooled Thermal Camera Core Longwave FPA 400x300 / 17μm VOx

I'm Online Chat Now

Uncooled Thermal Camera Core Longwave FPA 400x300 / 17μm VOx

Uncooled Thermal Camera Core Longwave FPA 400x300 / 17μm VOx
Uncooled Thermal Camera Core Longwave FPA 400x300 / 17μm VOx

Large Image :  Uncooled Thermal Camera Core Longwave FPA 400x300 / 17μm VOx

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN417/R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 400x300 / 17μm Frame Rate: 25Hz/30Hz/50Hz/60Hz
Temperature Range: -20℃~+550℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
NETD: <40mK Spectral Range: 8~14μm
High Light:

Uncooled Thermal Camera Core

,

17μm Thermal Camera Core

,

FPA uncooled thermal camera



COIN417/R Infrared Camera Core



Longwave FPA 400x300 / 17μm VOx Uncooled Thermal Camera Core



Product Description

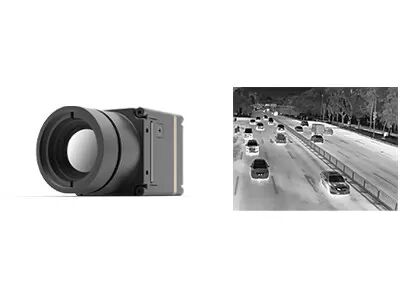

COIN417/R uncooled infrared modules integrates 400x300 / 17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm. Thanks to the wafer level packaging technology, the WLP infrared detector has simpler manufacturing process and easier to be integrated, which is more suitable for high volume and low cost production.



The COIN417/R infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.



Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It’s easier for COIN series infrared modules to be integrated into more terminal products and greatly reduces the cost for customers.



Main Features



- Mini Size: 25.4x25.4x14.1mm

- Light Weight

- NETD<40mk

- High Quality Image

- Low Power Consumption

- Rapid Development & Integration



Product Specifications



Model COIN417/R
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <40mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time ≤10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface 30pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 3.5~5.5V
Typical Power Consumption <1.1W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±3℃ or ±3% (Take the Maximum Value)
SDK Support ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 25.4x25.4x14.1 (With Shutter)
Weight 13g±0.5g (Without Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 9.7mm/15mm/19mm



Industrial Applications



The COIN417/R infrared camera core is widely used in Thermography, Security & Monitoring, Outdoors, Firefighting & Rescue, AIoT, Intelligent Hardware, UAV Payloads, ADAS etc.



Uncooled Thermal Camera Core Longwave FPA 400x300 / 17μm VOx 0



Our Advantages



Uncooled Thermal Camera Core Longwave FPA 400x300 / 17μm VOx 1



FAQs



1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
