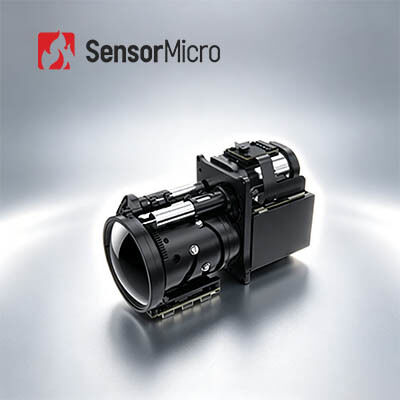

GAVIN GC615HMG 640×512 Resolution 15μm Pixel Pitch MWIR Infrared Camera Core with Fast Integration
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC615HMG |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 | Pixel Pitch | 15μm |
|---|---|---|---|
| NETD | 20mK(F4) | Cryo Cooler | RS058 |
| Spectral Range | 3.7~4.8μm MW | Size | 71×55×84mm |
| Highlight | MWIR Detector,MCT MWIR Detector |
||
Product Description
GAVIN GC615HMG HOT MWIR Cooled Infrared Camera Core 640×512/15μm Fast Integration
Product Overview
The GAVIN GC615HMG infrared camera core integrates a 640×512/15μm HOT MWIR cooled infrared detector with next-generation image processing algorithms. The HOT technology enables high-quality, stable imaging while delivering compact size, lightweight design, and low power consumption for optimized SWaP performance.
With broad compatibility across multiple digital video interfaces and easy secondary development, this camera core is suitable for handheld devices, mobile payloads, and long-duration monitoring applications.
Main Features
- Mainstream FPA, Clear Imaging - 640×512/15μm large-format HOT MWIR cooled infrared detector with next-generation image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement
- HOT Technology Leading SWaP Optimization - High-temperature operation up to 150K, cooling time ≤ 3min30s, compact size (71×55×84 mm), lightweight (350g), low power consumption (7W)
- Rich Interfaces, Easy Integration - Supports CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces with flexible RAW/YUV image output
Product Specifications
| Model | GAVIN GC615HMG |
|---|---|
| Performance | |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Cryocooler | RS058 |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F4) |
| Image Processing | |
| Frame Rate | 50Hz (F4) / 30Hz (F5.5) |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Analog Video | PAL/NTSC |
| Digital Video | Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤7W |
| Cooling Time(23℃) | ≤3min30s |
| Size(mm) | 71×55×84 |
| Weight(g) | ≤350 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 25mm/F2 Continuous zoom: 18~275mm/F5.5 110~1100mm/F5.5 15~300mm/F4 23~450mm/F4 |
Industrial Applications
The GAVIN GC615HMG thermal imaging module is widely used in NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, and many other industrial applications.
Product Portfolio Advantages
- Diverse Product Portfolio - Wide range of formats including infrared detectors, camera cores, and modules
- Rich Product Variety - Multiple array resolutions, pixel sizes, wavebands, and lens options combinations
- Outstanding Performance - Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability
- Easy Integration - Multiple interface options for straightforward integration and rapid development
Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?
SensorMicro thermal camera modules are widely used in many industries including:
- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
