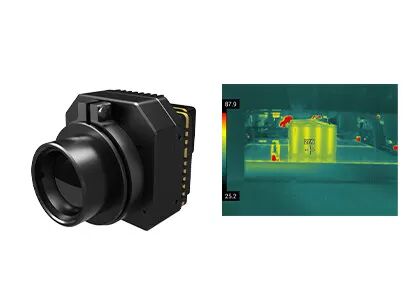

Uncooled LWIR Camera Module Core 640x512 / 17μm Strong Environmental Adaptability

I'm Online Chat Now

Uncooled LWIR Camera Module Core 640x512 / 17μm Strong Environmental Adaptability

Uncooled LWIR Camera Module Core 640x512 / 17μm Strong Environmental Adaptability
Uncooled LWIR Camera Module Core 640x512 / 17μm Strong Environmental Adaptability

Large Image :  Uncooled LWIR Camera Module Core 640x512 / 17μm Strong Environmental Adaptability

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG617R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512/17μm NETD: <30mK
Spectral Range: 8~14μm Size: 44.5x44.5x33.6mm
Weight: <90g Frame Rate: 25Hz/30Hz
High Light:

LWIR Camera Module Core

,

640x512 LWIR Camera Module

,

Uncooled Camera Module

PLUG617R Uncooled Thermal Camera Module



Uncooled LWIR VOx 640x512 / 17μm Infrared Thermal Module, Thermal Imaging Camera Core



Product Description



PLUG617R is one of the PLUG series uncooled thermal camera module developed by Global Sensor Technology (GST). It consists of 640x512 / 17μm uncooled fpa infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.



PLUG617R infrared thermal sensor module is a kind of uncooled camera module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image.



As a leading thermal camera module manufacturers, Global Sensor technology is committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability



Product Specifications



Model PLUG617R
IR Detector Performance
Resolution 640x512
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time <15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight <90g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm
Motorized Lens: 75mm/100mm/150mm



Industrial Applications



The PLUG617R infrared thermal module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



Uncooled LWIR Camera Module Core 640x512 / 17μm Strong Environmental Adaptability 0



About GST Infrared



Uncooled LWIR Camera Module Core 640x512 / 17μm Strong Environmental Adaptability 1



FAQs



1. What are the advantages of uncooled infrared detectors?

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.



2. What are the key considerations on an infrared detector / thermal module for your application?

---The detector resolution

---The pixel size

---The NETD

---The image quality

---The lens options

---The power consumption

---The size and weight

---The mechanical & electrical interface

---The budget
