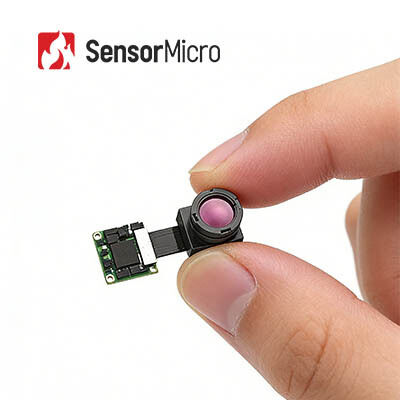

Mini212G2 Uncooled Infrared Module with 256×192 Resolution and 12μm Pixel Size for Direct Thermal Imaging Output
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | Mini212G2 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 256×192/12μm | NETD | ≤50mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Frame Rate | Thermography: 25Hz, Imaging: 50Hz |
| Digital Video Interface | USB2.0 / MIPI / DVP / BT.656 / LVDS | Analog Video Interface | CVBS (PAL/NTSC) |
| Highlight | Infrared Vehicle Mounted Thermal Camera,Vehicle Mounted Thermal Camera Anti Glare,384x288 Infrared Thermal Camera |
||
Product Description
Mini212G2 Uncooled Miniature Infrared Module with 256×192/12μm
Product Overview
The Mini212G2 uncooled infrared miniature module is built on SensorMicro's self-developed TIMO212 infrared module. The addition of an infrared ISP processing board enables direct output of temperature matrices and thermal images, significantly reducing the development workload for customers.
The miniature-sized Mini212G2 infrared camera module, integrated with a wafer-level packaging 256×192/12μm uncooled infrared detector, is specifically engineered to cater to the diverse and evolving needs of emerging markets, including AIoT (Artificial Intelligence of Things), Machine Vision, Industrial Vision, Security Monitoring, and Night Observation. With its compact design and high-performance infrared detection capability, this module serves as a core sensing component that breaks through the limitations of traditional imaging solutions, enabling precise, reliable, and efficient operation across a wide range of scenarios.
Main Features
Miniature Module with Direct Thermal Imaging Output
- Equipped with a self-developed 256×192/12μm wafer-level infrared detector, offering significant cost advantages
- Ultra-compact structural design: only 17×17mm (PCBA) in size, weighing as low as 4g — ideal for space-constrained applications
- Integrated ISP processing board and next-gen image algorithms deliver clear thermal images directly, ensuring strong versatility
Precise Detection, Flexible Configuration
- High-precision temperature measurement with accuracy up to ±2℃; supports spot, area, and full-frame measurement
- Multiple field-of-view lens options available to meet various observation requirements
Rich Interfaces for Easy Integration
- Offers USB2.0 / MIPI / DVP / BT.656 / LVDS and other digital video output interfaces
- Fully compatible with industry-standard interfaces
Product Specifications
| Model | Mini212G2 |
|---|---|
| Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Response | 8~14μm |
| NETD | ≤50mK |
| Output Data | 14bit Raw |
| Frame Rate | Thermography: 25Hz, Imaging: 50Hz |
| Focus Mode | Focus Free |
| Lens (HFOV/FL) | 17.5°/10mm | 25°/7mm | 56°/3.2mm | 90°/2.1mm |
| Weight (g) | 7.1 | 6.4 | 4 | 6.8 |
| PCBA Size (mm) | 17×17 |
| Digital Video Interface | USB2.0 / MIPI / DVP / BT.656 / LVDS |
| Analog Video Interface | CVBS (PAL/NTSC) |
| Operating Voltage | 3.3V±0.1V |
| Typical Power Consumption | 330mW |
| Temperature Measurement Range | -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Operating Temperature | -40℃~+70℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | RoHS 2.0 / Reach |
Industrial Applications
This product is positioned for fields such as AIoT, Machine Vision, Industrial Vision, Security Monitoring, and Night Observation.
AIoT Applications: Perfectly suitable for integration into compact AIoT devices such as smart home appliances, wearable devices, and intelligent environmental monitors.
Industrial Vision: Can be used for real-time monitoring of industrial equipment, laser processing and welding scenarios, semiconductor detection, and more.
Security Monitoring: Capable of detecting illegal intruders and triggering real-time alarms.
Customized Services
- Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
- On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
- Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?
Our thermal camera modules are widely used in many industries such as:
- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
- UAVs Payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
