Infrared Vehicle Mounted Thermal Camera Anti Glare with Intelligent Alarm

I'm Online Chat Now

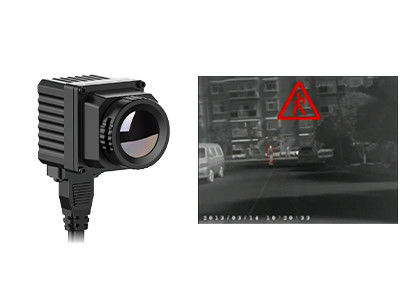

Infrared Vehicle Mounted Thermal Camera Anti Glare with Intelligent Alarm

Infrared Vehicle Mounted Thermal Camera Anti Glare with Intelligent Alarm
Infrared Vehicle Mounted Thermal Camera Anti Glare with Intelligent Alarm

Large Image :  Infrared Vehicle Mounted Thermal Camera Anti Glare with Intelligent Alarm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: N-driver 384S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 384x288/17μm NETD: <50mK
Spectral Range: 8~14μm Field Of View: 37°x28°
High Light:

Infrared Vehicle Mounted Thermal Camera

,

Vehicle Mounted Thermal Camera Anti Glare

,

384x288 Infrared Thermal Camera

Brief Introduction



Vehicle Mounted Infrared Thermal Camera with Intelligent Alarm & Advanced Driver Assistance System



Product Description



N-Driver384S vehicle-mounted infrared modules is specially designed for the automotive market with the 384x288 resolution and 12-micron pixel size uncooled LWIR infrared detector developed by Global Sensor Technology. The product has the functions of all-night vision and anti-glare, which meets various driving needs at night, inclement weather and complex road conditions, escort driving safety of the drivers.



The automatic brightness contrast and image enhancement algorithm of infrared image offered by N-Driver384S automotive thermal camera effectively improves the image detail and the adaptability of the scene. The driver can clearly see the road condition through the display, which greatly improves the safety of driving.



With N-Driver384S automotive thermal camera, drivers can see clear image 300 meters away beyond the reach of vehicles' headlights and enhance their field of view so as to better avoid obstacles and identify targets. It provides intelligent alarm based on a lot of model trainings and a set of mature AI algorithms to identify pedestrians, cyclists, vehicles and give warning in advance.



Main Features



- Not affected by light, harsh weather

- Improve visual range

- Escort the safety of drivers

- Easy to integrate and install

- Intelligent Alarm System



Product Specifications



Model

N-Driver 384S

IR Detector Performance

Resolution

384x288

Pixel Pitch

17μm

Spectral Range

8~14μm

NETD

<50mk

Image Display Performance

Focal Length

9.7mm

Field of View

37°×28°

Video Output Format

FPD-Link Ⅲ

Output Image Frame Rate & Resolution

DV 384x288@50Hz

System Features

Start-up Time

≤8s (Room Temperature)

Heater

When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself
When the Window Temperature is Higher than 7°C±2°C, Turn off Heating by Itself

Compensation Algorithm

Automatic Shutter Compensation

Image Algorithm

Automatic Brightness Contrast/Image Enhancement

Communication Interface

RS232, Baud rate: 115200bps

Pedestrian / Vehicle Detection

Pedestrian & Vehicle Detection (With Algorithm Control Box)

Electrical Features

Supply Voltage

DC8V±0.5V

Overall Power Consumption

≤2W@8V Power Supply, Window Heating is off
≤5W@8V Power Supply, Window Heating is on

Operating Range

Observe Range

Person: 1.8m×0.5m ≥150m
Car: 2.3m×2.3m ≥300m

Detect Range

Person ≥80m
Car ≥100m

External Cable Connection

Cable Length

4m

Standard External Interface

Power Supply+Video+Serial Port: LKX 06003M-D-1 (HSD LVDS4+2P Assembly Straight Head)

Physical Characteristics

Dimension (mm)

36.0x36.0x52.0 (Without Cable)

Weight

140g±3g (Without Cable)

Environmental Characteristics

Operation Temperature

-40°C~ +85°C

Storage Temperature

-45°C ~ +90°C

Environmental Test

Salt Spray: ISO16750-4; Harsh Level IV
Industrial Solvent: GB/T28046.5-2013

Reliability Test

Vibration: ISO16750-3, Grade A
Flame Retardant: GB8410, Grade B
Stone Impact: ISO16750-3, Grade A
ESD: Contact Discharge ±8KV, Air Discharge ±15KV

Package

Sealed Case IP67

Certification

EMC

/



Industrial Applications



The N-driver 384S automotive thermal imaging camera is widely used in Advanced Driver Assistance System.



Infrared Vehicle Mounted Thermal Camera Anti Glare with Intelligent Alarm 0



Our Advantages



Infrared Vehicle Mounted Thermal Camera Anti Glare with Intelligent Alarm 1



FAQs



1. In which industries can the infrared detectors/thermal camera cores be used?



GST thermal camera modules are widely used in many industries such as:



- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention

- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety

- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue

- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation

- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol

- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
