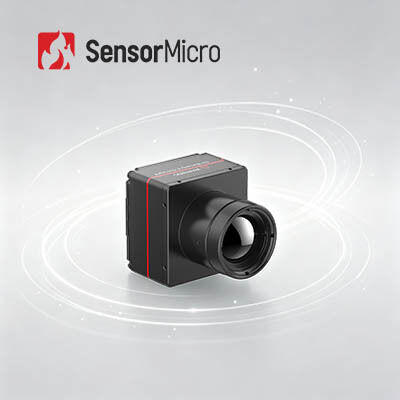

1280x1024 Resolution 12μm Pixel Pitch Shutterless Thermal Camera Core for High-end Thermal Imaging Module

  • 1280x1024 Resolution 12μm Pixel Pitch Shutterless Thermal Camera Core for High-end Thermal Imaging Module
Place of Origin China
Brand Name SensorMicro
Certification RoHS2.0; Reach
Model Number iSE1212
Minimum Order Quantity 1
Price Negotiable
Payment Terms T/T
Product Details
Working Voltage 2.7V~5.3V Spectral Range 8μm To 14μm
Pixel Pitch 12μm Typical Power Consumption 1.2W@25Hz@23±3℃
Sensor Uncooled Focal Plane Arrays Typical NETD ≤30mK
Highlight

USB3.0 Thermal Camera Core

,

GigE Thermal Camera Core

,

Cameralink Thermal Camera Core
Leave a Message
Product Description
1280x1024/12μm Thermal Camera Core for High-end Thermal Imaging Solution
Product Overview

The iSE1212 thermal camera core provides a high-end thermal imaging solution for integrators. It features a resolution of 1280x1024/12μm and a typical NETD of 30mK.

This thermal imaging module supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, electronic zoom, and other features. With a variety of video interfaces and lenses for easy integration, it delivers a first-class imaging experience for high-end infrared applications.

Key Features
  • High-Definition Imaging with Smooth Visuals - Delivers megapixel thermal imaging with smooth, lag-free performance. Wider field of view, larger angle coverage, longer detection range, and enhanced detail.
  • Shutterless Operation for Silent Performance - No shutter calibration required during use, eliminating image stuttering common in traditional designs. Silent operation helps avoid detection by targets.
  • Feature-Rich and Integration-Friendly - Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with a wide range of optical lenses and extended components, enabling easy secondary development and flexible system integration.
Technical Specifications
Parameter Specification
Model iSE1212
IR Detectors Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Effective Pixels 1280×1024
Digital Frame Rate 25Hz/30Hz/50Hz
Start-up Time 7s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Image Brightness Auto/Manual
Image Contrast Auto/Manual
Compensation Mode Manual
Reticle Supported
System Function
Sleep Mode Supported
Menu Setting Customizable
Menu Language Chinese / English
Offset calibration Supported
Keypads ≥4 (Button functions customizable)
OLED Driving Support I2C, 16bit/24bit Parallel Port, datavalid and other drive screen signals. Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A. Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen.
PC Software Computer Software - Module Control & Video Display
Electrical
Standard External Interface 50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB
Digital Video Interface DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE
Extension Components USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Supply Voltage 2.7V~5.3V
Typical Power Consumption 1.2W@25Hz@23±3℃
Mechanical/Lens
Bare Core Size (mm) 38×39×28 | 68×69×30.2
Bare Core Weight (g) 65±3 | 88.5±3
Optical Lens Fixed Focus Athermal: 14mm/19mm/25mm/35mm | Fixed Focus Athermal: 50mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Zoom: 15~100mm/25~75mm/28~90mm/30~180mm/25~225mm/30~300mm
Shutter Components Optional
Protection Level IP67 (Front Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35g, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 500g@1ms
Certification ROHS2.0/REACH
Applications
  • Industrial Vision
  • Firefighting and Rescue
  • Security Surveillance
  • Outdoor Observation
  • Machine Vision
  • Consumer Electronics
Product Advantages
Diverse Product Portfolio

A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.

Rich Product Variety

Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.

Outstanding Performance

Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.

Easy Integration

Multiple interface options make integration straightforward and enable rapid development across multiple application fields.

Support and Services

We are committed to providing you with the best possible service and support. Our knowledgeable support staff is available to answer any questions regarding installation, maintenance, and troubleshooting.

We offer comprehensive online support with helpful articles and tutorials for resolving common problems, plus remote assistance for more complex issues. Our team is always available to help ensure your complete satisfaction with our products.
