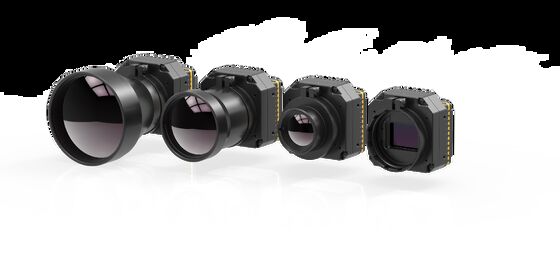

67g Infrared Detector 8μm-14μm Spectral Range
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSensor | Uncooled Focal Plane Arrays | Spectral Range | 8μm To 14μm |
---|---|---|---|
Pixel Pitch | 12μm | Extension Components | VPC/ USB3.0/ GigE/ Cameralink |
Fixed Focus Athermal | 19mm/24mm | Weight | 67g |
Working Voltage | 4V~6V | Typical NETD | <40mK |
Product Description:
Thermal Camera Core is a high-performance long wave infrared (LWIR) camera core, which provides the best performance and accuracy for thermal imaging application. It features typical NETD of <40mK, 50Hz frame rate, manual focus, 44.45mm×44.45mm×26mm compact size, and working voltage of 4V~6V. It is suitable for a wide range of applications, such as industrial equipment, robotics, and medical devices. With its advanced technologies, Thermal Camera Core is the perfect choice for infrared camera applications.
Features:
- Product Name: Thermal Camera Core
- Working Voltage: 4V~6V
- Spectral Range: 8μm To 14μm
- Fixed Focus Athermal: 19mm/24mm
- Weight: 67g
- Pixel Pitch: 12μm
- Technology: Infrared Camera Core, Microbolometer, LWIR Camera
Technical Parameters:
Parameter | Value |
---|---|
Focus | Manual |
Fixed Focus Athermal | 19mm/24mm |
Working Voltage | 4V~6V |
Spectral Range | 8μm To 14μm |
Resolution | 640×512 |
Pixel Pitch | 12μm |
Sensor | Uncooled Focal Plane Arrays |
Weight | 67g |
Typical NETD | <40mK |
Extension Components | VPC/ USB3.0/ GigE/ Cameralink |
Applications:
The GSTiR PLUG612 Thermal Camera Core is a longwave infrared imaging system designed to provide a wide range of applications and scenarios. It uses the latest uncooled IR detector technology and a microbolometer, making it an ideal solution for LWIR camera applications. The PLUG612 has a fixed focus athermal lens with 19mm/24mm options, and features a manual focus and 12μm pixel pitch. It has a lightweight design, weighing only 67g, and a low NETD of less than 40mK. With its high quality thermal imaging capabilities, the GSTiR PLUG612 Thermal Camera Core is a great choice for many different industries.
The GSTiR PLUG612 Thermal Camera Core is designed to provide reliable and accurate thermal imaging in a variety of industries. It can be used in security and surveillance applications, such as perimeter monitoring and night vision. It can also be used in industrial settings, such as non-destructive testing and predictive maintenance. Additionally, it can be used in medical applications, such as fever screening, and in research and development, such as thermal imaging of industrial processes. Furthermore, the GSTiR PLUG612 Thermal Camera Core is also suitable for a range of outdoor applications including wildlife monitoring, search and rescue, and environmental monitoring.
The GSTiR PLUG612 Thermal Camera Core is an ideal solution for those looking for a reliable, accurate, and lightweight thermal imaging camera. It is easy to install and requires minimal maintenance. With its low NETD and manual focus capabilities, this camera is sure to provide high quality images. The GSTiR PLUG612 Thermal Camera Core is available with a minimum order quantity of 1, and comes with a 1 year warranty. If you are looking for a reliable LWIR camera for your application, the GSTiR PLUG612 Thermal Camera Core is an excellent choice.
Customization:
GSTiR brings you the best in thermal imaging technology with the Thermal Camera Core. This thermal imaging module boasts a model number of PLUG612 and is manufactured in China. With a minimum order quantity of 1, the Thermal Camera Core offers a frame rate of 50Hz, and athermal focus of 19mm/24mm, size of 44.45mm×44.45mm×26mm, a typical NETD of <40mK, and a weight of 67g.
Thermal imaging modules from GSTiR are the perfect way to upgrade your thermal imaging capabilities. Whether you're looking for a superior thermal imaging camera or a reliable thermal imaging module, GSTiR has you covered.
Support and Services:
The Thermal Camera Core is designed to provide reliable support and service for our customers. Our technical support team is available to answer questions and provide assistance with installation, usage, and troubleshooting. We offer a variety of services, such as online and phone support, software updates, training and certification courses, and extended warranties.
Our technical support team is knowledgeable and experienced in using the Thermal Camera Core. We ensure that all of our customers receive professional and courteous assistance. We also strive to provide prompt and thorough responses to all inquiries.
We are committed to providing the highest level of customer service. We are available to answer any questions you may have and provide assistance with any technical issues. If you ever have a problem with your Thermal Camera Core, we are here to help. Thank you for choosing Thermal Camera Core and we look forward to providing you with the best service possible.
