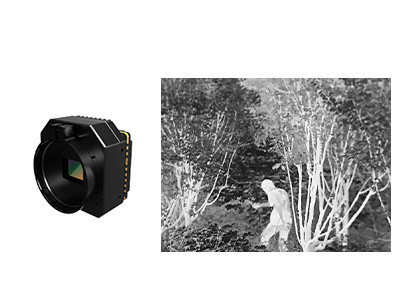

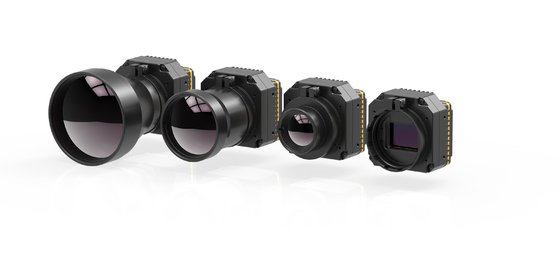

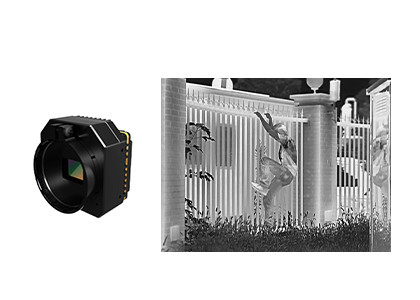

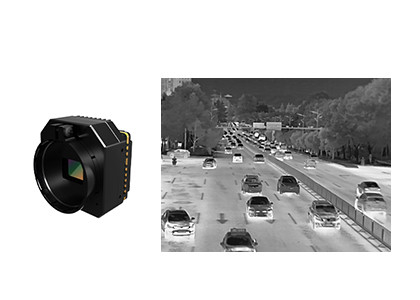

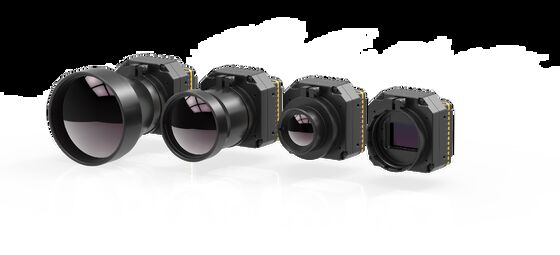

Uncooled Focal Plane Arrays Thermal Camera Core 50Hz Frame Rate 67g

Place of Origin China
Brand Name GSTiR
Model Number PLUG612
Minimum Order Quantity 1

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Working Voltage 4V~6V Sensor Uncooled Focal Plane Arrays
Resolution 640×512 Typical NETD <40mK
Focus Manual Frame Rate 50Hz
Fixed Focus Athermal 19mm/24mm Extension Components VPC/ USB3.0/ GigE/ Cameralink
Leave a Message
Product Description

Product Description:

The Thermal Camera Core is an infrared camera core designed for industrial thermal imaging applications. It features a high performance uncooled microbolometer with a resolution of 640×512 and a spectral range of 8μm to 14μm. This powerful thermal imaging module is equipped with multiple extension components including VPC, USB3.0, GigE and Cameralink, providing a wide range of connectivity options. It is designed for a variety of applications such as industrial automation, research and development, security and surveillance and more. With a lightweight of 67g, this thermal camera core is perfect for those who need to get the job done in harsh environments with limited space.

The Thermal Camera Core offers superior image quality and performance with its advanced microbolometer and high sensitivity. It provides excellent imaging performance in both long- and short-wave infrared imaging applications. With its multiple extension components and robust design, it is easy to integrate into existing systems and to customize the module for specific requirements. The Thermal Camera Core is an ideal solution for those who need reliable and powerful thermal imaging performance in a compact package.



  • Product Name: Thermal Camera Core
  • Weight: 67g
  • Pixel Pitch: 12μm
  • Size: 44.45mm×44.45mm×26mm
  • Spectral Range: 8μm To 14μm
  • Focus: Manual
  • Infrared Detector: 640x512/12um
  • Infrared Camera: Yes
  • Small Size: Yes

Technical Parameters:

Parameter Value
Weight 67g
Fixed Focus Athermal 19mm/24mm
Pixel Pitch 12μm
Size 44.45mm×44.45mm×26mm
Extension Components VPC/ USB3.0/ GigE/ Cameralink
Resolution 640×512
Working Voltage 4V~6V
Typical NETD <40mK
Sensor Uncooled Focal Plane Arrays
Focus Manual


The GSTiR PLUG612 Thermal Camera Core is a high-performance infrared detector module with an uncooled focal plane for thermal imaging applications. This thermal module has a resolution of 640×512 and a frame rate of 50Hz, and is powered by a 4V~6V working voltage. Weighing in at 67g, it is an ideal choice for various thermal imaging applications.


The GSTiR PLUG612 Thermal Camera Core has a variety of potential applications, from security to industrial automation. It can be used for night vision surveillance, temperature measurement, medical diagnosis, firefighting, non-destructive testing, and more. Its high-resolution imager and fast frame rate make it suitable for a range of tasks, from tracking objects in motion to detecting abnormalities in industrial processes. This thermal module is also ideal for embedded applications, as it is customizable and cost-effective.


Overall, the GSTiR PLUG612 Thermal Camera Core is a reliable and cost-effective thermal imaging solution for a wide range of applications. With its high resolution and frame rate, it is capable of providing clear images and fast response times. This thermal module is lightweight and customizable, making it an ideal fit for various applications. This thermal camera core is an ideal choice for your infrared detector needs.



Thermal Camera Core with GSTiR PLUG612 Uncooled Focal Plane Arrays

Our Thermal Camera Core provides customers with an infrared detector to capture images from 8μm To 14μm, using an uncooled IR detector. This infrared camera core is a great choice for thermal imaging applications.

  • Brand Name: GSTiR
  • Model Number: PLUG612
  • Place of Origin: China
  • Minimum Order Quantity: 1
  • Spectral Range: 8μm To 14μm
  • Working Voltage: 4V~6V
  • Sensor: Uncooled Focal Plane Arrays
  • Pixel Pitch: 12μm
  • Weight: 67g

Support and Services:

Thermal Camera Core Technical Support and Service

We offer comprehensive technical support and services for Thermal Camera Core products. Our team of expert technicians will provide you with the highest quality of service and support to ensure your product is working correctly and efficiently.

We can provide:

  • 24/7 customer support and technical assistance
  • Installation and maintenance of Thermal Camera Core products
  • Online troubleshooting and technical advice
  • Regular software and hardware updates
  • Training and education for Thermal Camera Core products

Our team is dedicated to providing you with the best possible service and support, and we are always available to answer any questions you may have.
