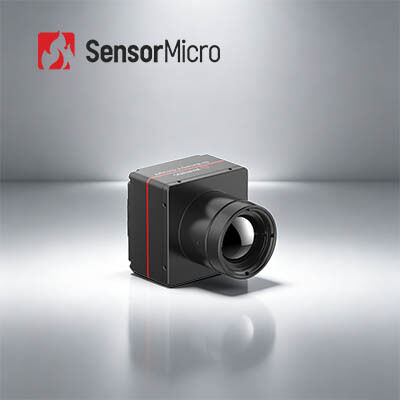

1280x1024 Resolution 12μm Pixel Pitch Shutterless Thermal Camera Core for High-Definition Infrared Imaging
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | RoHS2.0; Reach |
| Model Number | iSE1212 |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Product Details
| Resolution | 1280×1024 | Typical NETD | ≤30mK |
|---|---|---|---|
| Frame Rate | 25/30/50Hz | Typical Power Consumption | 1.2W@25Hz@23±3℃ |
| Supply Voltage | 2.7V~5.3V | Pixel Pitch | 12μm |
| Highlight | Infrared Camera Core 24mm,Infrared Camera Core 19mm,Athermal Infrared Camera Core |
||
Product Description
Ultra Clear Image 1280x1024/12μm Infrared Camera Core for Security Surveillance
Product Overview
The iSE1212 thermal camera core delivers sharp thermal imaging solutions for diverse applications. With a high resolution of 1280x1024 and 12μm pixel pitch, this uncooled infrared camera module offers superior image clarity, making it an ideal choice for reliable, high-performance infrared imaging applications.
Key Features
- High-Definition Imaging with Smooth Visuals: Delivers megapixel thermal imaging with lag-free performance, wider field of view, larger angle coverage, longer detection range, and enhanced detail
- Shutterless Operation for Silent Performance: No shutter calibration required during use, eliminating image stuttering common in traditional designs; silent operation helps avoid detection by targets
- Feature-Rich and Integration-Friendly: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays; compatible with wide range of optical lenses and extended components for easy secondary development
Technical Specifications
| Model | iSE1212 |
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Effective Pixels | 1280×1024 |
| Digital Frame Rate | 25Hz/30Hz/50Hz |
| Start-up Time | 7s |
| Digital Video | YUV420/YUV422/RGB888/RAW |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC |
| Shutterless | Supported |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| Image Direction | Horizontal/Vertical/Diagonal |
| Digital Zoom | 1x/2x/4x/8x |
| Image Brightness | Auto/Manual |
| Image Contrast | Auto/Manual |
| Compensation Mode | Manual |
| Reticle | Supported |
| System Function | |
| Sleep Mode | Supported |
| Menu Setting | Customizable |
| Menu Language | Chinese / English |
| Offset calibration | Supported |
| Keypads | ≥4 (Button functions customizable) |
| OLED Driving | Support I2C, 16bit/24bit Parallel Port, datavalid and other drive screen signals; Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A; Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen |
| PC Software | Computer Software: Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 |
| Communication Interface | TTL-232/USB |
| Digital Video Interface | DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE |
| Extension Components | USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE |
| Supply Voltage | 2.7V~5.3V |
| Typical Power Consumption | 1.2W@25Hz@23±3℃ |
| Mechanical/Lens | |
| Bare Core Size(mm) | 38×39×28 | 68×69×30.2 |
| Bare Core Weight(g) | 65±3 | 88.5±3 |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm | Fixed Focus Athermal: 50mm/100mm; Motorized Lens: 75mm/100mm/150mm; Continuous Zoom: 15~100mm/25~75mm/28~90mm/30~180mm/25~225mm/30~300mm |
| Shutter Components | Optional |
| Protection Level | IP67 (Front Lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35g, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 500g@1ms |
| Certification | ROHS2.0/REACH |
Applications
The iSE1212 thermal camera core is the perfect choice for applications requiring advanced thermal imaging capabilities, including:
- Industrial Vision
- Firefighting and Rescue
- Security Surveillance
- Outdoor Observation
- Machine Vision
- Consumer Electronics
Our Product Line
High Sensitivity and Excellent Performance
World-leading technology in infrared industry
Various Infrared Detectors Available
Both uncooled and cooled IR detectors in different formats and pixel sizes
Volume Production for Fast Delivery
Three production lines with annual production capability up to millions of detectors
Support and Services
We provide comprehensive technical support and services to ensure the best experience with our products. Our technical support team is available 24/7 to answer questions and concerns related to product use. We offer software and firmware updates, bug fixes, and product-related information. Our team provides guidance for integrating Thermal Camera Core products into existing systems. Additionally, we offer warranty and repair services to cover any potential issues that may arise after purchase.
