1280x1024/12μm Uncooled Infrared Module for Ultra Clear Thermal Imaging

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number PLUG1212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Resolution 1280x1024/12μm NETD <50mK
Spectral Range 8~14μm Size 20x20x10.4mm
High Light

12um Uncooled Infrared Module


Clear Thermal Imaging Infrared Module


Thermal Imaging Uncooled Infrared Module

Leave a Message
Product Description

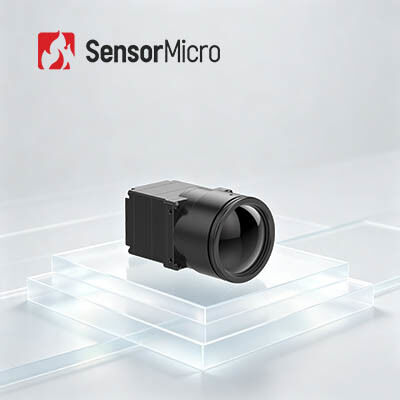

1280x1024/12μm Uncooled Infrared Module for Ultra Clear Thermal Imaging


Product Description


PLUG1212 is one of the PLUG series thermal camera modules. PLUG series thermal cores are the most popular infrared products developed by Global Sensor Technology (GSTiR). They are designed to provide clear thermal imaging, best performance together with the most advanced connectivity. The uncooled HD LWIR 1280x1024/12μm VOx thermal imaging module provides exceptional image quality and temperature sensitivity while offering the convenience of uncooled operation.


The key feature of this thermal imaging module is its large format 1280x1024 pixel resolution, which enables precise and detailed thermal imaging. By utilizing a 12μm pixel pitch, this module achieves a high level of accuracy and clarity in capturing temperature variations. These advancements allow for improved detection and analysis capabilities across various applications.


Main Features


- Ultra clear thermal imaging

- Stable performance

- Clear Image Quality & Details

- Strong Environmental Adaptability


Product Specifications


Model PLUG1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Typical Power Consumption <2.0W
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤220g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optional Lens Fixed Focus Athermal: 19mm/25mm


Industrial Applications


The PLU1212 infrared imaging module is widely used in Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.

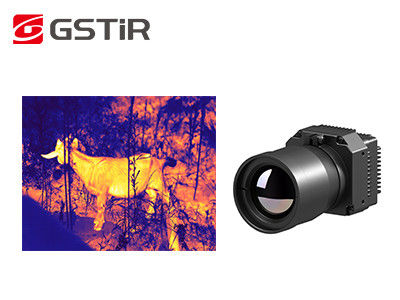

1280x1024/12μm Uncooled Infrared Module for Ultra Clear Thermal Imaging 0

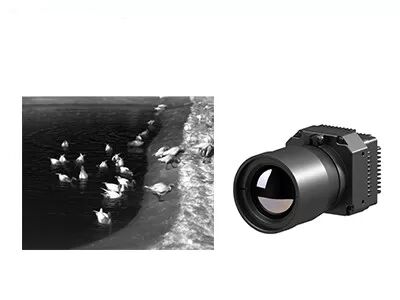

1280x1024/12μm Uncooled Infrared Module for Ultra Clear Thermal Imaging 1




1.What is an infrared detector?

An infrared detector is a device that detects and measures infrared radiation. Infrared radiation is a type of electromagnetic radiation that has a longer wavelength than visible light and is therefore not visible to the naked eye. Infrared detectors can detect and analyze the distribution of infrared radiation across a range of wavelengths. They are used in a variety of applications, including thermal imaging, spectroscopy, remote sensing, and security systems. Infrared detectors can be classified into several types, including photon detectors (such as photovoltaic detectors or photoconductors) and thermal detectors (such as microbolometers or thermopiles).
