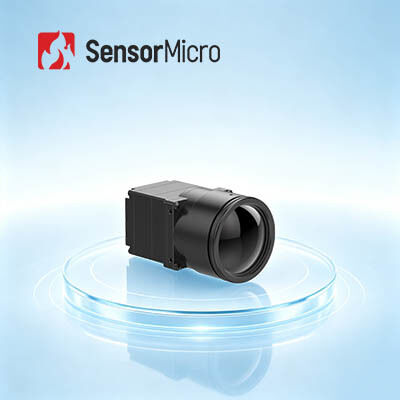

1280x1024 Resolution 12μm Pixel Size 30Hz Frame Rate Uncooled VOx Microbolometer Module for Thermal Imaging

  • 1280x1024 Resolution 12μm Pixel Size 30Hz Frame Rate Uncooled VOx Microbolometer Module for Thermal Imaging
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number COIN1212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024/12μm Digital Frame Rate 30Hz
Spectral Range 8~14μm Typical NETD ≤40mK/F1.0/25℃
Supply Voltage 4.5~5.5V Typical Power Consumption 1.0W
Highlight

Uncooled VOx Microbolometer Module

,

Thermal Imaging Microbolometer Module

,

Uncooled Microbolometer Module
Leave a Message
Product Description

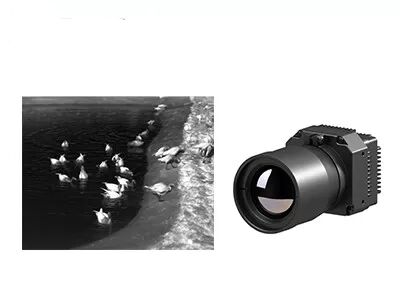

1280x1024 12μm Uncooled VOx Microbolometer Module for Flexible Thermal Imaging Solutions
Product Overview

The COIN1212 infrared camera core uses a 1280×1024/12 μm megapixel infrared detector. Built-in advanced signal processing and imaging algorithms support standard serial protocols, multiple video outputs and comprehensive lens selections. It enables rapid hotspot detection and clear thermal imaging, lowering barriers for secondary development. Suitable for infrastructure monitoring, high-end manufacturing, intelligent transportation and scientific research projects.

Main Features
High-Definition Imaging, Precise Detection
  • 1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging
  • Captures fine target details clearly during close-range observation
Full-Featured and Cost-Effective
  • Built with an industry-leading large-format uncooled infrared detector
  • Integrated with advanced image processing algorithms to enhance image clarity and visual quality
Rapid Integration, Accelerated Development
  • Supports multiple image output interfaces including DVP and BT.1120
  • Outputs RAW/YUV image data with serial port control
Product Specifications
Model COIN1212
IR Detectors Indicators Sensitive Material: VOx
Resolution: 1280×1024
Pixel Size: 12μm
Spectral Response: 8μm ~ 14μm
Typical NETD: ≤40mK/F1.0/25℃
Image Processing Digital Frame Rate: 30Hz
Start-up Time: 6s
Analog Video: /
Digital Video: RAW/YUV422
Image Algorithm: Non-uniformity Correction (NUC), 3D Noise Reduction (3DNR), 2D Noise Suppression (DNS), Dynamic Range Compression (DRC), Edge Enhancement (EE)
Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software ICC Software: Module Control & Video Display
Electrical Standard External Interface: 50pin: DF40C-50DP-0.4V(51), (HRS,Male)
Extension Board: USB3.0
Communication Interface: TTL-232
Digital Video Interface: DVP16/BT.1120/MIPI
Supply Voltage: 4.5~5.5V
Typical Power Consumption: 1.0W
Mechanical Bare Core Size(mm): 14mm/19mm/25mm: 25.4mm×25.4mm×19.3mm; 35mm/50mm/100m: 35.4mm×35.4mm×17.8mm
Bare Core Weight(g): 14mm/19mm/25mm: 19.7±1g; 35mm/50mm/100m: 32.5±1g
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃~+85℃
Humidity: 5%~95%, non-condensing
Vibration: 5.35grms, Random Vibration, 3-axis
Impact: Half Sine Wave, 40g/11ms, Impact Direction 3 Axis, 6 Direction
Certification: ROHS2.0/REACH
Optical Lens Optical Lens: Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm
Protection Level: IP67(Front Lens)
Industrial Applications

The COIN1212 thermal imaging module is widely used in Key Infrastructure Monitoring, High-end Manufacturing, Industrial Inspection, Scientific Research etc.

Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
  • Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
  • Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
  • Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What is infrared thermography?

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.

What can the infrared thermography be used for?

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.

What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
