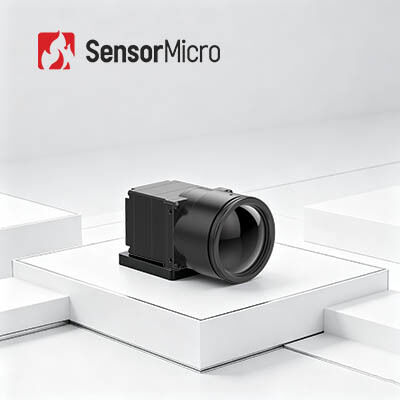

Enhanced Clarity And Precision HD 1280x1024 Thermal Camera Core

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number PLUG1212R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Resolution 1280x1024/12μm NETD <50mK
Spectral Range 8~14μm Size 20x20x10.4mm
High Light

1280x1024 Infrared Imaging Module


HD Thermal Imaging Camera Core


HD 1280x1024 Thermal Camera Core

Leave a Message
Product Description

Enhanced Clarity and Precision HD 1280x1024 Thermal Camera Core


Product Description


PLUG1212R is one of the PLUG-R series uncooled infrared camera module developed by Global Sensor Technology (GST). It is based on GST1212M uncooled infrared detector with professional signal processing circuit and image processing platform, completely transforms the target infrared radiation into temperature data. Its temperature measurement is available and temperature range can be customizable, which meet the specific requirements of industrial thermography.


The Uncooled HD LWIR 1280x1024/12μm VOx Thermal Imaging Module offers a wide temperature measurement range, enabling diverse applications in fields such as industrial inspection, surveillance, and security. With a temperature range covering both sub-zero temperatures (-20℃) and high-temperature environments (up to 550), this module accommodates the demands of various thermal imaging scenarios.


Main Features


- Pixel pitch: 12μm

- Resolution: 1280x1024

- Spectra Range: 8μm -14μm

- High Sensitivity: NETD<30mK

- Temperature Range: -20℃~150℃, 100℃~550℃

- Temperature Accuracy: ±2℃ or ±2%

- High reliability & Strong Environmental Adaptability.


Product Specifications


Model PLUG1212R
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤200g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optional Lens Fixed Focus Athermal: 19mm/25mm


Industrial Applications


The PLU1212R infrared imaging module is widely used in Power Electricity, Machine Vision, Building Inspection, Metallurgical Petrochemical etc.


Enhanced Clarity And Precision HD 1280x1024 Thermal Camera Core 0

Our Advantages


Enhanced Clarity And Precision HD 1280x1024 Thermal Camera Core 1




1. How does a thermal module work?


A thermal module typically works as follows:


1) Infrared Detection: The thermal module contains an infrared detector that can sense the electromagnetic radiation in the infrared range.


2) Optics: The infrared radiation is focused onto the detector through an optical system, which may include a lens or an array of mirrors.


3) Signal Amplification: The detected signal is amplified and digitized by the electronics inside the thermal module.


4) Image Processing: The digitized signal is then processed to produce a thermal image. This process involves several stages, including noise reduction, contrast enhancement, and color mapping. Additional features such as temperature measurement may be included in the image processing.


5) Display: The thermal image is then displayed on a screen, either inside the thermal module or on an external device.
