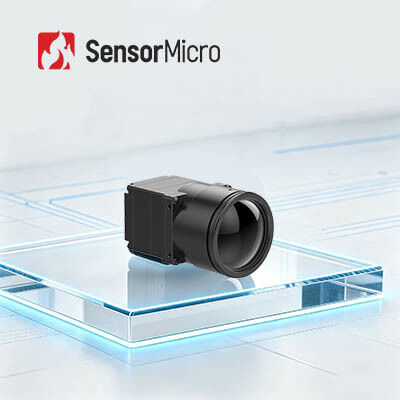

1280x1024 Resolution 12μm Pixel Pitch LWIR Infrared Camera Core for Industrial Inspection
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN1212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024 | Power Consumption | 1.0W |
|---|---|---|---|
| Spectral Range | 8~14μm | Pixel Pitch | 12μm |
| Digital Video Interface | DVP16/BT.1120/MIPI | Frame Rate | 30Hz |
| Highlight | 12UM LWIR Camera Core,Medical LWIR Camera Core,640x512 Infrared Detectors |
||
Product Description
1280x1024 12μm LWIR Infrared Camera Core for Industrial Inspection
Product Overview
Delivering outstanding performance with high cost-effectiveness, the COIN1212 infrared camera core integrates top-tier 1280×1024/12μm wafer-level infrared detection technology and professional imaging processing systems. It comprehensively enhances thermal image clarity and detection accuracy, supporting full-format video output, serial protocol communication, and diverse optical lens matching. The highly integrated structure significantly shortens project development cycles and reduces R&D costs, providing enterprises with a ready-to-use, reliable all-in-one thermal imaging solution for infrastructure, manufacturing, transportation, and scientific research applications.
Main Features
- 1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging
- Captures fine target details clearly during close-range observation
- Built with an industry-leading large-format wafer-level infrared detector
- Integrated with advanced image processing algorithms to enhance image clarity and visual quality
- Supports multiple image output interfaces including DVP and BT.1120
- Outputs RAW/YUV image data with serial port control
High-Definition Imaging, Precise Detection
Full-Featured and Cost-Effective
Rapid Integration, Accelerated Development
Product Specifications
| Model | COIN1212 |
|---|---|
| IR Detectors Indicators |
Sensitive Material: VOx Resolution: 1280×1024 Pixel Size: 12μm Spectral Response: 8μm ~ 14μm Typical NETD: ≤40mK/F1.0/25℃ |
| Image Processing |
Digital Frame Rate: 30Hz Start-up Time: 6s Analog Video: / Digital Video: RAW/YUV422 Image Algorithm: Non-uniformity Correction (NUC), 3D Noise Reduction (3DNR), 2D Noise Suppression (DNS), Dynamic Range Compression (DRC), Edge Enhancement (EE) Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | ICC Software: Module Control & Video Display |
| Electrical |
Standard External Interface: 50pin: DF40C-50DP-0.4V(51), (HRS,Male) Extension Board: USB3.0 Communication Interface: TTL-232 Digital Video Interface: DVP16/BT.1120/MIPI Supply Voltage: 4.5~5.5V Typical Power Consumption: 1.0W |
| Mechanical |
Bare Core Size(mm): 14mm/19mm/25mm: 25.4mm×25.4mm×19.3mm 35mm/50mm/100m: 35.4mm×35.4mm×17.8mm Bare Core Weight(g): 14mm/19mm/25mm: 19.7±1g 35mm/50mm/100m: 32.5±1g |
| Environmental Adaptability |
Operating Temperature: -40℃~+70℃ Storage Temperature: -45℃~+85℃ Humidity: 5%~95%, non-condensing Vibration: 5.35grms, Random Vibration, 3-axis Impact: Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times Certification: ROHS2.0/REACH |
| Optical Lens |
Optical Lens: Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm Protection Level: IP67(Front Lens) |
Industrial Applications
The COIN1212 thermal imaging module is applied in the field of Key Infrastructure Monitoring, High-end Manufacturing, Industrial Inspection, Scientific Research, and more.
About SensorMicro
SensorMicro was founded with a simple but powerful belief: Innovation should serve real-world needs.
SensorMicro exists to empower people and systems to see beyond the surface—into the patterns, the problems, and the possibilities that lie beneath.
By turning invisible heat into visible truth, we help industries make smarter decisions, protect what matters most, and navigate complexity with clarity.
Heeding to our insistence on being self-made and customer-first has become a sure recipe for SensorMicro's momentum. As our business spans much of the globe, we've charged ahead on all fronts—from security, firefighting, industrial inspection, medical care, and machine vision, to environmental monitoring and key aspects of carbon neutrality—helping partners unlock the full potential of intelligent infrared sensing, and connecting the dots of life.
We are more than an infrared technology company. We are a community of people committed to building a sustainable, ethical, and human-centered future. Every pixel of innovation we create is a promise—a promise to protect, to empower, and to serve.
Frequently Asked Questions
Wide application of infrared thermal imaging module
Infrared thermal modules are widely used in industrial temperature measurement, medical inspection, construction, and other fields.
In the industrial field, thermal imaging modules can be used for fault detection and temperature monitoring of mechanical equipment, which can improve production efficiency and reduce production costs.
In the medical field, infrared camera modules can be used to diagnose breast cancer, measure body surface temperature, etc., which can improve the medical level and provide more diagnostic information for medical workers.
In the field of construction, infrared thermal imaging modules can be used to detect energy loss in buildings, improving energy utilization efficiency, and reducing energy consumption.
Additional application scenarios include security monitoring, UAV payloads, personal night vision, thermography, and more.
