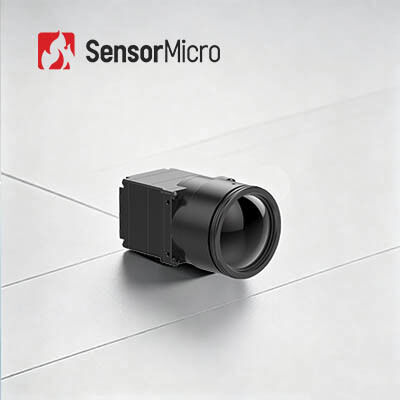

LWIR Thermal Imaging Module with 1280x1024 Resolution and 12μm Pixel Pitch Infrared Camera Core Featuring USB3.0 Extension Board
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN1212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Supply Voltage | 4.5~5.5V | Resolution | 1280x1024 |
|---|---|---|---|
| Pixel Pitch | 12μm | Extension Board | USB3.0 |
| Power Consumption | 1.0W | Spectral Range | 8~14μm |
| Highlight | Cooled Infrared Detector Thermal Module,640x512 Detector Thermal Module,0.8W Cooled Infrared Detector |
||
Product Description
LWIR Thermal Imaging Module With 1280x1024 12μm Infrared Detector for Security
Product Overview
COIN1212 is a high-resolution infrared camera core designed for high-performance applications. Utilizing advanced uncooled microbolometer technology, this infrared camera core delivers ultra-clear thermal imaging for various industries including security and surveillance, industrial inspection, and scientific research.
Featuring a 1280x1024 pixel array with a 12μm pixel pitch, this thermal camera core provides high-resolution imaging that is both efficient and reliable, with exceptional temperature sensitivity and a wide dynamic range of up to 14 bits. The COIN1212 thermal module is ideal for long-range security cameras, handheld thermal imagers, and other applications requiring high-resolution imaging capabilities.
Main Features
- High-Definition Imaging, Precise Detection: 1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging. Captures fine target details clearly during close-range observation.
- Full-Featured and Cost-Effective: Built with industry-leading large-format wafer-level infrared detector. Integrated with advanced image processing algorithms to enhance image clarity and visual quality.
- Rapid Integration, Accelerated Development: Supports multiple image output interfaces including DVP and BT.1120. Outputs RAW/YUV image data with serial port control.
Product Specifications
| Model | COIN1212 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤40mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 30Hz |
| Start-up Time | 6s |
| Analog Video | / |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0 |
| Communication Interface | TTL-232 |
| Digital Video Interface | DVP16/BT.1120/MIPI |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 1.0W |
| Mechanical | |
| Bare Core Size(mm) | 14mm/19mm/25mm: 25.4mm×25.4mm×19.3mm 35mm/50mm/100m: 35.4mm×35.4mm×17.8mm |
| Bare Core Weight(g) | 14mm/19mm/25mm: 19.7±1g 35mm/50mm/100m: 32.5±1g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
The COIN1212 thermal imaging module is applied in the field of Key Infrastructure Monitoring, High-end Manufacturing, Industrial Inspection, Scientific Research, and more.
Our Advantages
- Diversified Product Portfolio
- Deep Technical Expertise
- Rigorous Reliability Validation Ensures Quality Assurance
- Focused on Innovation and Practical Implementation in Infrared Sensing
- Professional Technical Support and Joint Development Services
Frequently Asked Questions
Application of LWIR, MWIR/LWIR Dual-color Cooled Infrared Detector
In infrared thermal imaging technology, long-wave thermal detectors have strong penetration through dusty atmospheres, are not disturbed by sun glint effects and light reflections. Outstanding image quality can be obtained in various complex environments, such as vehicle drives in dusty atmospheres, ship sails on water with reflective light, and aircraft flying through clouds.
The dual-color cooled infrared detector combines the advantages of mid-wave and long-wave detection into one cooled infrared detector assembly, which can simultaneously perform high-performance imaging in dual wavebands, greatly reducing the false alarm rate. It can be used for the detection of complex backgrounds and the monitoring of high-speed moving targets.
