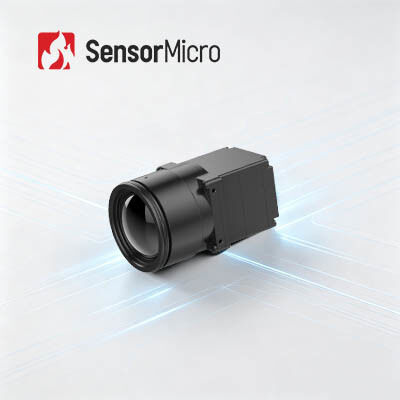

LWIR Uncooled Infrared Camera Core with 1280x1024 Resolution and 12μm Pixel Pitch for Fast Integration
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN1212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024 | Frame Rate | 30Hz |
|---|---|---|---|
| Power Consumption | 1.0W | Spectral Range | 8~14μm |
| Pixel Pitch | 12μm | NETD | ≤40mK/F1.0/25℃ |
| Highlight | LWIR Infrared Camera Core,Uncooled Infrared Camera Core 640x512,12uM LWIR Camera Core |
||
Product Description
LWIR Uncooled Infrared Camera Core 1280x1024/12µm for Fast Integration
Product Overview
As a dedicated OEM/ODM thermal imaging core module, the COIN1212 infrared camera core adopts a mature 1280×1024 high-resolution 12μm wafer-level detector and integrated signal processing and imaging algorithm systems. It boasts rich expandable interfaces including DVP and BT.1120, supports customizable RAW/YUV data output and standard serial communication protocols, and is compatible with a full series of optical lenses. With stable imaging performance, fast hotspot response and ultra-low integration difficulty, it can be seamlessly embedded into various terminal devices and system platforms, serving core thermal imaging components for intelligent equipment, industrial monitoring and scientific research instruments.
Main Features
- High-Definition Imaging, Precise Detection: 1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging. Captures fine target details clearly during close-range observation.
- Full-Featured and Cost-Effective: Built with an industry-leading large-format wafer-level infrared detector. Integrated with advanced image processing algorithms to enhance image clarity and visual quality.
- Rapid Integration, Accelerated Development: Supports multiple image output interfaces including DVP and BT.1120. Outputs RAW/YUV image data with serial port control.
Product Specifications
| Model | COIN1212 |
|---|---|
| IR Detectors Indicators |
Sensitive Material: VOx Resolution: 1280×1024 Pixel Size: 12μm Spectral Response: 8μm ~ 14μm Typical NETD: ≤40mK/F1.0/25℃ |
| Image Processing |
Digital Frame Rate: 30Hz Start-up Time: 6s Analog Video: / Digital Video: RAW/YUV422 Image Algorithm: Non-uniformity Correction (NUC), 3D Noise Reduction (3DNR), 2D Noise Suppression (DNS), Dynamic Range Compression (DRC), Edge Enhancement (EE) Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | ICC Software: Module Control & Video Display |
| Electrical |
Standard External Interface: 50pin: DF40C-50DP-0.4V(51), (HRS,Male) Extension Board: USB3.0 Communication Interface: TTL-232 Digital Video Interface: DVP16/BT.1120/MIPI Supply Voltage: 4.5~5.5V Typical Power Consumption: 1.0W |
| Mechanical |
Bare Core Size(mm): 14mm/19mm/25mm: 25.4mm×25.4mm×19.3mm; 35mm/50mm/100m: 35.4mm×35.4mm×17.8mm Bare Core Weight(g): 14mm/19mm/25mm: 19.7±1g; 35mm/50mm/100m: 32.5±1g |
| Environmental Adaptability |
Operating Temperature: -40℃~+70℃ Storage Temperature: -45℃~+85℃ Humidity: 5%~95%, non-condensing Vibration: 5.35grms, Random Vibration, 3-axis Impact: Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times Certification: ROHS2.0/REACH |
| Optical Lens |
Optical Lens: Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm Protection Level: IP67(Front Lens) |
Industrial Applications
The COIN1212 thermal imaging module is applied in the field of Key Infrastructure Monitoring, High-end Manufacturing, Industrial Inspection, Scientific Research etc.
Our Product Line
- High sensitivity and excellent performance with world-leading technology in infrared industry
- Various infrared detectors available including both uncooled and cooled IR detectors in different formats and pixel sizes
- Volume production to ensure fast delivery with three production lines and annual production capability up to millions of detectors
Frequently Asked Questions
What are the applications of thermal modules?
Thermal modules have a wide range of applications across various fields. Some of the common applications include:
- Medical Imaging: Used for diagnosing conditions that affect blood flow, such as breast cancer and deep vein thrombosis.
- Industrial Inspection: Used for monitoring machinery, quality control, and predictive maintenance.
- Building Diagnostics: Used to detect and diagnose energy loss, moisture problems, and electrical faults in buildings.
- Firefighting: Helps firefighters locate and identify hotspots and fire sources under smoke and dust.
- Law Enforcement: Used in surveillance and search and rescue missions requiring enhanced visibility in low-light environments.
- Automotive: Used in Advanced Driver-Assistance Systems (ADAS) applications such as pedestrian detection and object detection.
- Security/Surveillance: Used to monitor buildings, borders, and perimeters for intruders and suspicious activity.
The specific application of thermal modules depends on their sensitivity, resolution, spectral range, and other features such as temperature measurement and image processing capabilities.
