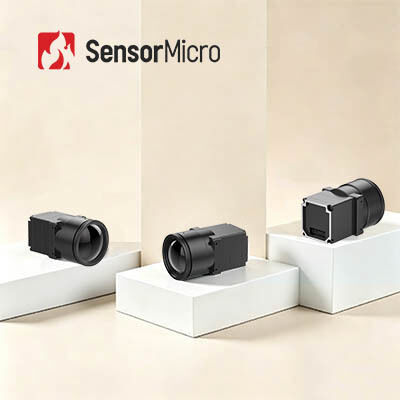

Uncooled LWIR Thermal Module with 1280x1024 Resolution 12μm Pixel Pitch and 30Hz Frame Rate
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN1212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Frame Rate | 30Hz | Resolution | 1280x1024 |
|---|---|---|---|
| Supply Voltage | 4.5~5.5V | Power Consumption | 1.0W |
| Spectral Range | 8~14μm | Pixel Pitch | 12μm |
| Highlight | 25mm Lens Thermal Module,Outdoor Detection LWIR Thermal Module,Detection Thermal Camera Core |
||
Product Description
Uncooled LWIR Thermal Module 1280x1024 12μm with 14/19/25mm Lens
COIN1212 Infrared Camera Core
Product Overview
Tailored for high-end industrial and scientific thermal imaging applications, the COIN1212 infrared camera core leverages a premium large-format 12μm wafer-level infrared detector with 1280×1024 megapixel resolution to achieve ultra-fine thermal detection and long-range high-definition imaging.
Empowered by advanced self-adaptive imaging algorithms, it optimizes image quality in complex environments and accurately captures subtle temperature variations and target details. With full-range optical lens compatibility and multi-protocol, multi-interface output capabilities, it provides a highly integrated, reliable thermal imaging core solution for key infrastructure safety monitoring, high-precision manufacturing quality inspection, intelligent traffic perception and professional scientific research experiments.
Main Features
- High-Definition Imaging, Precise Detection
- 1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging
- Captures fine target details clearly during close-range observation
- Full-Featured and Cost-Effective
- Built with an industry-leading large-format wafer-level infrared detector
- Integrated with advanced image processing algorithms to enhance image clarity and visual quality
- Rapid Integration, Accelerated Development
- Supports multiple image output interfaces including DVP and BT.1120
- Outputs RAW/YUV image data with serial port control
Product Specifications
| Model | COIN1212 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤40mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 30Hz |
| Start-up Time | 6s |
| Analog Video | / |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0 |
| Communication Interface | TTL-232 |
| Digital Video Interface | DVP16/BT.1120/MIPI |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 1.0W |
| Mechanical | |
| Bare Core Size(mm) | 14mm/19mm/25mm: 25.4mm×25.4mm×19.3mm 35mm/50mm/100m: 35.4mm×35.4mm×17.8mm |
| Bare Core Weight(g) | 14mm/19mm/25mm: 19.7±1g 35mm/50mm/100m: 32.5±1g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
- Key Infrastructure Monitoring
- High-end Manufacturing
- Industrial Inspection
- Scientific Research
Company Profile
As a world-leading manufacturer and service provider of infrared detectors, SensorMicro boasts years of profound experience in infrared thermal imaging solutions. Guided by the core philosophy of "SensorMicro, Sense More" and driven by user needs, we are dedicated to unlocking the full potential of infrared technology, delivering high-performance products and professional services to customers worldwide.
Frequently Asked Questions
What is an Infrared Camera?
Infrared thermal imaging system uses infrared detectors to sense infrared radiation, and convert it to electrical signals which are then amplified, processed to an image displayed.
Basic Principle of Infrared Camera
Thermal imaging technology is a kind of passive, non-contact detection and recognizing technology. It has two main functions:
- Thermography: non-contact temperature measurement and fault detection
- Night Vision: easily detect and identify the target in total darkness
