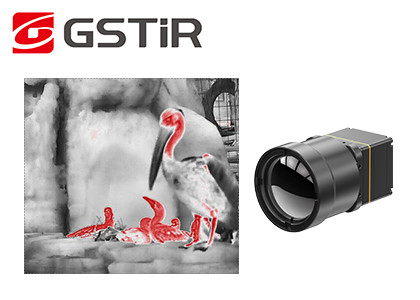

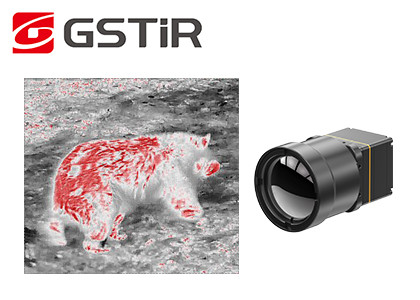

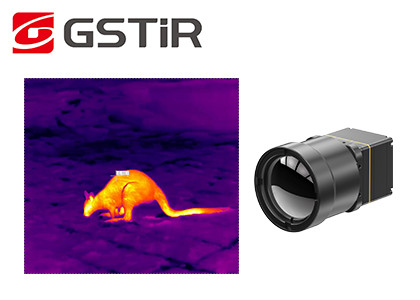

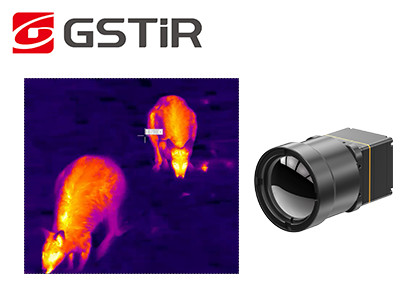

TWIN612 Thermal Imaging Module Sharp & Clear Images With ±2℃ Or ±2% Accuracy

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number TWIN612/R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Resolution 640x512 Power Consumption 0.8W
Spectral Range 8~14μm Pixel Pitch 12μm
NETD <40mK Frame Rate 25Hz/30Hz
High Light

TWIN612 Thermal Imaging Module


RS232 Thermal Imaging Module


Clear Thermal Camera Core

Leave a Message
Product Description

TWIN612 Thermal Imaging Module - Sharp & Clear Images with ±2℃ or ±2% Accuracy


Product Description


TWIN612 thermal module is a new arrival product developed by Global Sensor Technology. The 640x512/12µm uncooled infrared camera core is a sophisticated thermal imaging sensor that delivers high-quality imaging in a compact, user-friendly package. This camera core is built using cutting-edge uncooled microbolometer technology, which delivers superior thermal imaging performance compared to conventional thermal imaging systems.


The TWIN612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the TWIN612 thermal module presents more stable images and accurate temperature.


With its 640x512 pixel array and pixel pitch of 12µm, this camera core provides ultra-high resolution imaging capabilities for a wide range of applications. It offers temperature sensitivity of less than 50 mk and features a dynamic range of up to 14 bits, ensuring accurate and detailed imaging even in challenging environments.


The camera core is suitable for use in a broad range of industries, including security and surveillance, industrial automation, and medical imaging. Additionally, its compact size, low-power consumption, and compatibility with a range of external interfaces make it ideal for integration into handheld and mobile devices, drones, and other lightweight platforms.


Overall, the 640x512/12µm uncooled infrared camera core is a powerful and versatile thermal imaging solution that offers top-of-the-line imaging performance for a wide range of applications.


Main Features


- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W


Product Specifications


Model TWIN612/R
IR Detector Performance
Resolution 640×512
Pixel Size 12μm
Spectral Range 8~14μm
Typical NETD <40mK
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time 6s
Analog Video PAL/NTSC
Digital Video YUV/BT.656/LVDS/USB2.0
Image Display 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot)
Image Algorithm NUC/3D/2D/DRC/EE
Electrical Specifications
Standard External Interface 50pin_HRS
Communication Interface RS232/USB2.0
Supply Voltage 4~5.5V
Typical Power Consumption 0.8W
Temperature Measurement
Operating Temperature Range -10℃~50℃
Temperature Measurement Range -20℃~150℃, 0℃~550℃
Temperature Measurement Accuracy Greater of ±2℃ or ±2%
SDK Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Dimension (mm) 25.4×25.4×35 (Without Lens)
Weight 25g (Without Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, 3 Axis
Shock Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Optional Lens Fixed Athermal: 13mm


Industrial Applications

The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue

Our Advantages

TWIN612 Thermal Imaging Module Sharp & Clear Images With ±2℃ Or ±2% Accuracy 0



1. What is the focal length?

We all know that the imaging principle of camera is pinhole imaging, so in a digital camera, the focal length refers to the distance from the lens pinhole to the sensor, and the unit is mm (millimeter).



2. Definition of Different Lens Types

When it comes to camera lenses, some people may know that there are fixed-focus lenses and zoom lenses. A fixed focal length lens means that the focal length is fixed, while a zoom lens means that the focal length of the lens is variable.

Generally, the focal length will be marked on the camera lens, such as 50mm, 24-70mm, etc. If there is only one number on the lens, it means that it is a fixed-focus lens, such as a 50mm lens, which means that the lens can only be fixed at a focal length of 50mm.
If there are two numbers marked on the lens, it means that it is a zoom lens, such as a 24-70mm lens, which means that the focal length of this lens can be adjusted freely between 24-70mm.
