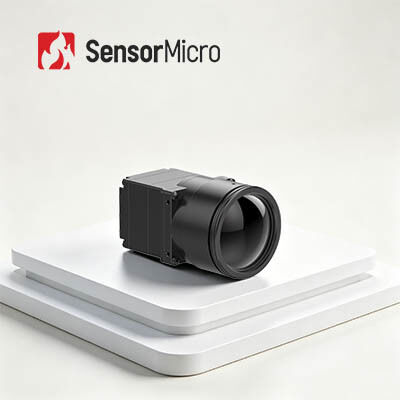

1280×1024 Resolution 12μm Pixel Pitch 30Hz Frame Rate Thermal Imaging Module with Infrared Camera Core
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN1212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024 | Power Consumption | 1.0W |
|---|---|---|---|
| Digital Video Interface | DVP16/BT.1120/MIPI | Pixel Pitch | 12μm |
| Extension Board | USB3.0 | Frame Rate | 30Hz |
| Highlight | TWIN612 Thermal Imaging Module,RS232 Thermal Imaging Module,Clear Thermal Camera Core |
||
Product Description

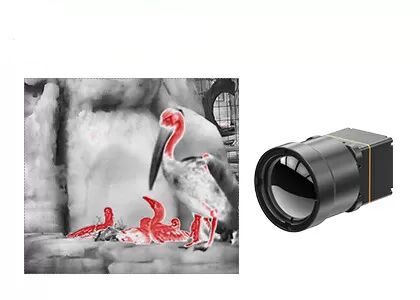

1280×1024/12μm High Definition Thermal Imaging Module with Sharp & Clear Images
Product Overview
COIN1212 thermal module uses 1280x1024/12µm uncooled infrared detector that delivers high-quality imaging in a compact, user-friendly package. This infrared camera core is built using cutting-edge uncooled microbolometer technology, which delivers superior thermal imaging performance. With enhanced image algorithms, the COIN1212 thermal imaging module presents ultra clear thermal images.
The COIN1212 thermal camera core is suitable for use in a broad range of industries, including security and surveillance, industrial automation, and scientific research. Additionally, its compact size, low-power consumption, and compatibility with a range of external interfaces make it ideal for integration into handheld devices, security cameras, and other platforms.
Overall, the 1280x1024/12µm uncooled infrared camera core is a powerful and versatile thermal imaging solution that offers top-of-the-line imaging performance for a wide range of applications.
Main Features
High-Definition Imaging, Precise Detection
- 1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging
- Captures fine target details clearly during close-range observation
Full-Featured and Cost-Effective
- Built with an industry-leading large-format wafer-level infrared detector
- Integrated with advanced image processing algorithms to enhance image clarity and visual quality
Rapid Integration, Accelerated Development
- Supports multiple image output interfaces including DVP and BT.1120
- Outputs RAW/YUV image data with serial port control
Product Specifications
| Model | COIN1212 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤40mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 30Hz |
| Start-up Time | 6s |
| Analog Video | / |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0 |
| Communication Interface | TTL-232 |
| Digital Video Interface | DVP16/BT.1120/MIPI |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 1.0W |
| Mechanical | |
| Bare Core Size(mm) | 14mm/19mm/25mm: 25.4mm×25.4mm×19.3mm 35mm/50mm/100m: 35.4mm×35.4mm×17.8mm |
| Bare Core Weight(g) | 14mm/19mm/25mm: 19.7±1g 35mm/50mm/100m: 32.5±1g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
- Key Infrastructure Monitoring
- High-end Manufacturing
- Industrial Inspection
- Scientific Research
Standardized Service
- Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
- Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
- Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
- Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
1. What is the focal length?
We all know that the imaging principle of camera is pinhole imaging, so in a digital camera, the focal length refers to the distance from the lens pinhole to the sensor, and the unit is mm (millimeter).
2. Definition of Different Lens Types
When it comes to camera lenses, some people may know that there are fixed-focus lenses and zoom lenses. A fixed focal length lens means that the focal length is fixed, while a zoom lens means that the focal length of the lens is variable.
Generally, the focal length will be marked on the camera lens, such as 50mm, 24-70mm, etc. If there is only one number on the lens, it means that it is a fixed-focus lens, such as a 50mm lens, which means that the lens can only be fixed at a focal length of 50mm. If there are two numbers marked on the lens, it means that it is a zoom lens, such as a 24-70mm lens, which means that the focal length of this lens can be adjusted freely between 24-70mm.
