LWIR Thermal Imaging Module With 640x512 12μM Infrared Detectors For Outdoors

LWIR Thermal Imaging Module With 640x512 12μM Infrared Detectors For Outdoors

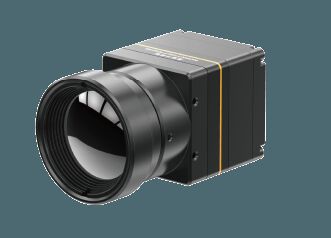

TWIN612 thermal module is a new arrival product developed by Global Sensor Technology. It integrates 640×512/12µm ceramic package uncooled infrared detector. With typical NETD＜40mk, the TWIN612 thermal module could present clearer, sharper and more detailed image.

With temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rate up to 30Hz, the thermal module guarantees smooth thermal image and accurate temperature measurement.

The TWIN612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the TWIN612 thermal module presents more stable images and accurate temperature.

Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the TWIN612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.

- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W


The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue


1. Short-wave Infrared Vs. Medium and Long Wave Infrared

Short-wave infrared is more like enhanced vision, and its image is very similar to that seen by human eyes. This has strong advantages in many applications, such as seeing the important features of maritime targets such as the name of ships, and face recognition in security monitoring applications. In addition, short-wave infrared imaging has a major advantage that infrared thermal imaging technology does not have, that is, it can image through the windshield.

While for the long-wave and medium-wave infrared thermal imaging, they use the thermal radiation emitted by the scene itself at room temperature. It is a kind of passive imaging, without sunlight, light and other external light sources, and has the characteristics of good stealth. In addition, the temperature difference imaging between the target and the surrounding environment has high contrast, long action distance, and certain penetration ability for trees and grass, so it is easy to find hot targets. Therefore, it is widely used in perimeter protection, intrusion alarm, hunting, outdoor and other fields.
