LWIR Uncooled Thermal Camera Core with 1280x1024 Resolution and 12μm Pixel Pitch for High-Definition Imaging
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN1212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024 | NETD | ≤40mK/F1.0/25℃ |
|---|---|---|---|
| Power Consumption | 1.0W | Frame Rate | 30Hz |
| Spectral Range | 8~14μm | Pixel Pitch | 12μm |
| Highlight | LWIR Uncooled Thermal Module 12uM,Night Vision LWIR Camera Core,640x512 Clear Thermal Camera Core |
||
Product Description

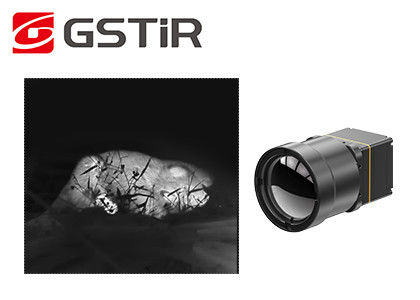

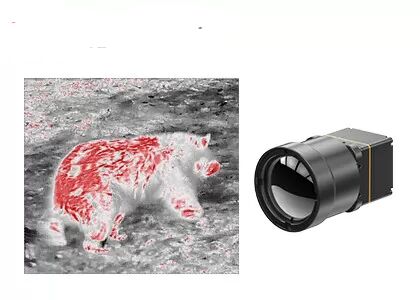

LWIR Uncooled Thermal Camera Core 1280x1024 12μm for Personal Night Vision
Product Overview
The COIN1212 infrared camera core is a tailored high-end thermal imaging solution for multiple key industry scenarios. Its 1280×1024 high-definition 12μm wafer-level detection system enables long-distance wide-range monitoring and short-distance fine detection, perfectly matching the precision requirements of industrial quality inspection and infrastructure safety investigation.
Equipped with complete communication protocols and video output modes, it can be quickly integrated into intelligent transportation systems and scientific research experimental equipment, providing stable, efficient and high-precision thermal imaging support for various high-end scenario applications.
Main Features
- High-Definition Imaging, Precise Detection: 1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging. Captures fine target details clearly during close-range observation.
- Full-Featured and Cost-Effective: Built with an industry-leading large-format wafer-level infrared detector. Integrated with advanced image processing algorithms to enhance image clarity and visual quality.
- Rapid Integration, Accelerated Development: Supports multiple image output interfaces including DVP and BT.1120. Outputs RAW/YUV image data with serial port control.
Product Specifications
| Model | COIN1212 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤40mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 30Hz |
| Start-up Time | 6s |
| Analog Video | / |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0 |
| Communication Interface | TTL-232 |
| Digital Video Interface | DVP16/BT.1120/MIPI |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 1.0W |
| Mechanical | |
| Bare Core Size(mm) | 14mm/19mm/25mm: 25.4mm×25.4mm×19.3mm 35mm/50mm/100m: 35.4mm×35.4mm×17.8mm |
| Bare Core Weight(g) | 14mm/19mm/25mm: 19.7±1g 35mm/50mm/100m: 32.5±1g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
The COIN1212 thermal imaging module is applied in the field of Key Infrastructure Monitoring, High-end Manufacturing, Industrial Inspection, Scientific Research, and more.
About Us
Focusing on infrared thermal imaging technology, SensorMicro specializes in providing a comprehensive portfolio of core products, including high-performance cooled and uncooled infrared detectors, thermal modules, and infrared cores. These products serve as the "eyes" of thermal perception, empowering a wide range of industries with reliable and efficient infrared solutions.
Frequently Asked Questions
1. Infrared Thermal Module Interface * HDMI
HDMI is short for High Definition Multimedia Interface. It is used to replace the older analog signal AV transmission interface, such as RCA. HDMI is the most widely used digital audio and video interface in the field of infrared thermal imaging consumer electronics, and is also widely used by various infrared camera module products.
There are many versions of the HDMI interface:
- HDMI standard interface: namely HDMI A-type interface, with a width of 14mm, and it is used for HD TV, desktop computer, projector and other equipment
- HDMI mini interface: namely HDMI C-type interface, with a width of 10.5mm, and it is used for MP4, tablet computers, cameras and other devices
- HDMI micro interface: namely the HDMI D-type interface, with a width of 6mm wide, and it is used for smart phones, tablets and other devices.
At present, the infrared thermal module developed by SensorMicro uses the HDMI standard interface.
