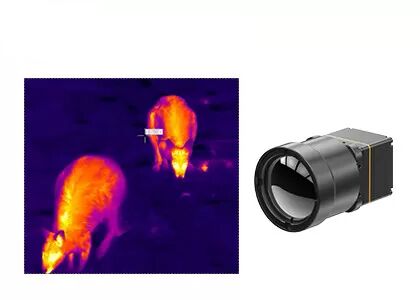

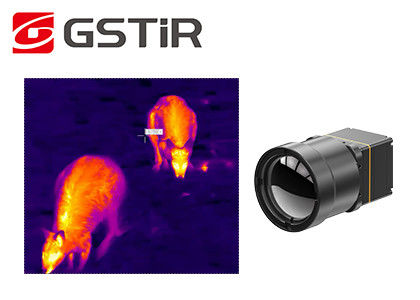

Long Wave 640x512 12μm Uncooled Thermal Camera Core for Wildlife Observation

Long Wave 640x512 12μm Uncooled Thermal Camera Core for Wildlife Observation

TWIN612 thermal module is a new arrival product developed by Global Sensor Technology. It integrates 640×512/12µm ceramic package uncooled infrared detector. With typical NETD＜40mk, the TWIN612 thermal module could present clearer, sharper and more detailed image.

With temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rate up to 30Hz, the thermal module guarantees smooth thermal image and accurate temperature measurement.

The TWIN612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the TWIN612 thermal module presents more stable images and accurate temperature.

Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the TWIN612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.

- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W


The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue


1. The Differences in Focal Length

The smaller the focal length is, the wider the viewfinder range gets, and the wider the field of view of the captured picture will be. So more scenes can be captured, but the scene is very small in the picture.

The larger the focal length is, the narrower the viewfinder range gets, and the smaller the field of view of the captured picture will be. So fewer scenes can be captured, but the proportion of the scene in the picture is very large.

Infrared camera modules developed by GSTiR team offer wide variety of lens types, such as fixed focus lens, zoom lens, motorized lens etc.

2. How to Choose Suitable Thermal Module for Your Application?

When choosing a suitable thermal imaging module for your products, you need to consider many aspects, such as resolution, frame rate, field of view, range, spectral range etc. Therefore, selecting the appropriate thermal imaging module is the key to ensuring high-quality images and accurate results. Among these aspects, resolution is one of the most critical factors.
