15μM 640x512 Cooled MWIR Infrared Detector For Remote Monitoring System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 640x512/12μm | NETD | ≤17mK (F2); ≤18mK (F4) |
|---|---|---|---|
| Spectral Range8~14μm | 3.7~4.8μm MW | Operation Temperature | -45℃~+71℃ |
| High Light | RoHS MWIR Infrared Detector,15uM MWIR Infrared Detector,Remote Monitoring Cooled MWIR Detector |
||
Product Description

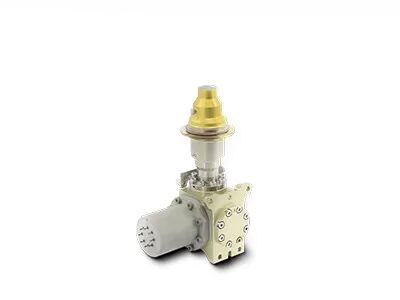

15μM 640x512 Cooled MWIR Infrared Detector For Remote Monitoring System
About C615M Cooled Infrared Detector
High Sensitivity 640x512 / 15μm MWIR Cooled Infrared Detector with RS058 Integral Stirling Cooler
Product Description
C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). It is with the most popular 640x512@15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.
The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.
Main Features
- Resolution: 640x512
- Pixel Pitch: 15μm
- High Sensitivity
- Compact Design
- Lightweight
- Low Power Consumption
Product Specifications
| Model | C615M MW |
| Material | MCT |
| Resolution | 640x512 |
| Pixel Pitch | 15μm |
| Spectral Range | 3.7μm～4.8μm MW |
| Working Mode | Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 9.1Me-/6.5Me-(ITR) 7.8Me-/5.2Me-(IWR) |
| Dynamic Range | ≥75dB |
| Number of Output | 4; Up to 10Mpixel/s per Output |
| NETD | F2: ≤17mK F4: ≤18mK |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058/RS046 |
| Steady Power Consumption | ≤6W@RS058 ≤5W@RS046 |
| Max Power Consumption | ≤12W @ RS058 ≤11W @ RS046 |
| Power Supply | RS058: 24V DC RS046: 32V DC |
| Cooling Time | ≤6min @ RS058 ≤5min30s @ RS046 |
| Weight | ≤600g @ RS058 ≤350g @ RS046 |
| Dimension (mm) | RS046: 122x46.3x82 RS058: 147x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
About Global Sensor Technology
FAQs
1. What is infrared radiation?
When talking about infrared thermal imaging, the first thing to think about is infrared radiation (IR). The wavelength of infrared radiation energy starts at about 700nm and extends to about 1mm. All objects emit a certain amount of heat in the form of infrared radiation, which is invisible to us, because in the entire electromagnetic spectrum, the naked eye can only see "visible light".
2. How does infrared thermal imager work?
The core component of the infrared equipment is the infrared thermal detector, which can sensitively detect the tiny temperature difference of the surrounding objects. Then, it collects this radiation information from the object and outputs the temperature information for imaging, which is based on the temperature difference information. The hotter the object, the more infrared radiation it produces. If the intensity is too high, you can feel it like heat.
