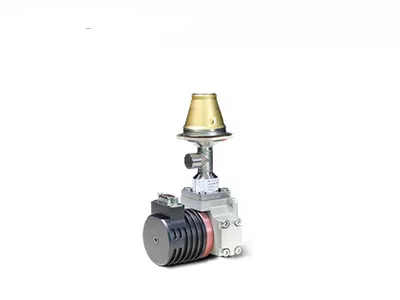

1280x1024 12μm Cooled FPA Infrared Detector 18mK High Sensitivity Integrated Dewar Cooler Assembly

Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number C1212M
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024/12μm NETD 18mK (F2/F4)
Spectral Range 3.7~4.8μm MW Operating Temperature -45℃~+71℃
Power Supply 24V DC Max. Frame Rate 100Hz
Highlight

Cooled FPA Detector 1280x1024

,

24VDC Cooled FPA Detector

,

Megapixels MWIR FPA Detector

Leave a Message
Product Description
Product Overview

The C1212M MWIR MCT FPA infrared detector delivers high resolution, high performance, and high reliability. It offers four times as many pixels in the same active image area as conventional 640×512 products. Its reduced 12 µm pixel size provides better spatial resolution and matches shorter optical lens focus to achieve the same range mission. The C1212M cooled infrared detector is an ideal choice for applications requiring superior long-range performance and detailed image recognition.

Main Features
Outstanding Performance
  • 1280×1024 high definition for a wider field of view and longer detection distance
  • 12 µm pixel size for improved spatial resolution
Sharp & Clear Image
  • High sensitivity, with typical NETD as low as 18 mK
  • Good uniformity, with an effective pixel rate greater than 99.5%
Design for Specific Applications
  • F-number can be customized
  • Guaranteed continuous supply
Product Specifications
Model C1212M HD MWIR Cooled Infrared Detector
Sensitive Material MCT
Resolution 1280×1024
Pixel Size 12 µm
Spectral Response 3.7 µm ± 0.2 µm ~ 4.8 µm ± 0.2 µm
Working Mode Snapshot; ITR/IWR integration modes; Windows mode; anti-blooming
Charge Capacity 6.75 Me⁻ / 4.8 Me⁻ (ITR); 5.25 Me⁻ / 3.3 Me⁻ (IWR)
Dynamic Range ITR mode ≥ 80 dB; IWR mode ≥ 76 dB
Output Channel 4 or 8 channels; up to 20 MHz per output
Max. Frame Rate 100 Hz
Typical NETD 18 mK (F2/F4)
Effective Pixel Rate ≥ 99.5%
Response Non-uniformity ≤ 8%
Configurable Cryocooler RS058F LS734
Cryocooler Type Rotary Stirling Cryocooler Linear Stirling Cryocooler
Steady Power Consumption (23 ℃) ≤ 7 W ≤ 10 W
Max. Power Consumption (71 ℃) ≤ 17 W ≤ 45 W
Power Supply 24 V DC 24 V DC
Cooling Time (23 ℃) ≤ 6 min ≤ 4 min
Maximum Size (mm) 149 × 58.5 × 71 Compressor Φ46 × 122
Dewar Φ55 × 119
Weight (g) ≤ 600 ≤ 1200
Operating Temperature -45 ℃ ~ +71 ℃
Industrial Applications

The C1212M MWIR cryogenically cooled infrared detector is widely used in many areas, including non-destructive testing (NDT), environmental monitoring, long-range surveillance, and scientific research.

Our Advantages

SensorMicro is one of China's earliest companies researching antimonide-based Type-II superlattice (T2SL) cooled infrared detectors. It pioneered the mass production and engineering application of such detectors domestically, with proven capabilities in R&D and manufacturing of high-end advanced devices, including MWIR, LWIR, large-format arrays, and high-operating-temperature (HOT) detectors.

Frequently Asked Questions
1. What is infrared radiation?

When talking about infrared thermal imaging, the first thing to consider is infrared radiation (IR). The wavelength of infrared radiation energy starts at about 700 nm and extends to about 1 mm. All objects emit a certain amount of heat in the form of infrared radiation, which is invisible to us because, across the entire electromagnetic spectrum, the naked eye can only see "visible light".

2. How does an infrared thermal imager work?

The core component of infrared equipment is the infrared thermal detector, which can sensitively detect the tiny temperature differences of surrounding objects. It then collects this radiation information from the object and outputs the temperature information for imaging, based on the temperature difference information. The hotter the object, the more infrared radiation it produces. If the intensity is high enough, you can feel it as heat.
