Product Description

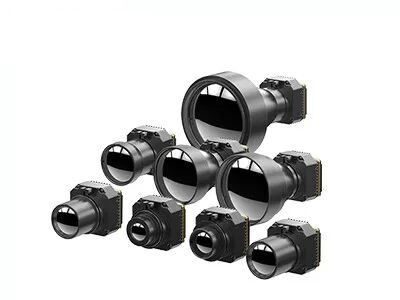

PLUG417R Uncooled Thermal Module


400x300 17μM LWIR Thermal Camera Module Uncooled With Industrial Thermography


Product Description


PLUG417R thermal camera core uses the 400x300 / 17μm uncooled LWIR infrared detctor with an optional temperature measurement function with measurement range from -20℃~150 ℃ for industrial or body temperature measurement. This infrared thermal module can not only measures the value of temperature around you but also display the thermal imaging figure. So it must be your best choice to monitor the temperature change.


This small infrared camera module can be widely used in infrared thermal imaging applications such as Thermography, Electricity Power Inspection, Building Inspection etc. It is beneficial to OEM customers for secondary development and integration in all kinds of thermal imagers and infrared thermographic cameras.


Main Features

- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability


Product Specifications


Model PLUG417R
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time <15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4.5~6V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight ≤77g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm


Industrial Applications


The PLUG417R thermal camera core is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.


LWIR Thermal Camera Core Uncooled 400x300 for Building HVAC Security 0


Praises from Customers


LWIR Thermal Camera Core Uncooled 400x300 for Building HVAC Security 1




1. Working Principle of Infrared Focal Plane Array

An array of photosensitive elements is arranged on the focal plane array detector. Infrared rays emitted from infinity are imaged on these photosensitive elements of the focal plane array through the optical system. The detector converts the light signal into an electrical signal and performs integral amplification, sampling, output buffer and multiplexing system, and is finally sent to the monitoring system to form an image.
