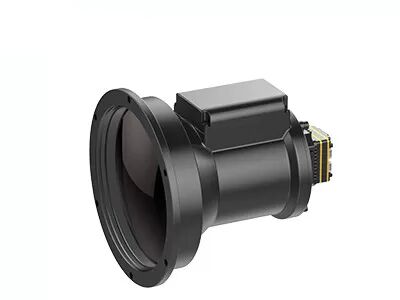

Uncooled Thermal Imaging Camera Module 640x512 17μm for Animal Observation
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Resolution||640x512 / 17μm||Camera Lens||Multiple Available|
|Spectral Range||8~14μm LW||Size||44.5x44.5x33.6mm|
Uncooled Camera Module 640x512,
Thermal Imaging Camera Module 17um
640x512 / 17μm Uncooled Thermal Imaging Camera Module for Outdoors, Animal Observation
PLUG617 is one of the PLUG series uncooled thermal camera sensor module developed by Global Sensor Technology (GST).
Consisted of 640x512 / 17µm uncooled thermal camera sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG617 LWIR camera module provides clear image and superior performance.
PLUG series uncooled infrared modules are specially developed for various personalized observation requirements, which provide various standard industrial interfaces and infrared lens options to meet specific integration requirements. Some professional thermal imaging solutions have been applied to many applications.
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability
|IR Detector Performance|
|Digital Zoom||1~8X Continual Zoom, Step Size 1/8|
|Image Display||Black Hot/White Hot/Pseudo Color|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||50pin_HRS Interface|
|Communication Mode||RS232-TTL, 115200bps|
|Typical Power Consumption||<1.2W|
|Operation Temperature||-40°C ~ +70°C|
|Storage Temperature||-45°C ~ +85°C|
|Vibration||Random Vibration 5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm
The PLUG617 thermal imager module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.
1. Why do IR detectors need to be cooled?
Based on operating temperature and cooling needs, infrared detector can be divided into cooled and uncooled. Uncooled thermal imaging sensor works at room temperature, which have slow response and a relatively low sensitivity. While cooled infrared detector works at cryogenic temperature. The reason is that cooled infrared detector is essentially a photon detector and needs to be cooled at low temperatures to perform at its best.
2. What is the Advantages of Medical Thermal Imaging?
Medical testing is the first step in medical diagnosis, and many of the current tests to assess organ health are invasive and uncomfortable. While thermal imaging combined with medical examination can solve this problem very well.
By using thermal imaging technology, doctors can carry out 100% safe, no radiation, non-invasive, non-contact full body checkup to avoid further, unnecessary testing procedures. The heat distribution in various parts of human body can be quickly shown to early detect and diagnose physical abnormalities, so that any further treatment can be easier and more effective.
