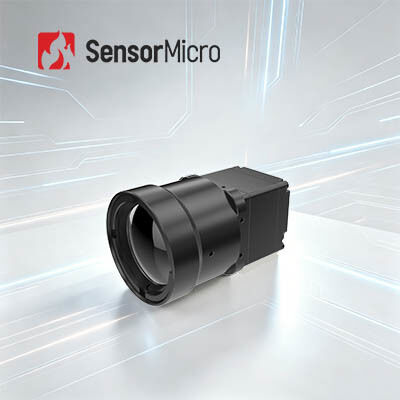

Uncooled Thermal Imaging Camera Module with 640x512 Resolution and 12μm Pixel Pitch for Shutterless Operation
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iSE612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Spectral Range | 8~14μm LW | Camera Lens | Multiple Available |
|---|---|---|---|
| Start-up Time | 6s | NETD | ≤20mK |
| Resolution | 640x512 / 12μm | Frame Rate | 50Hz |

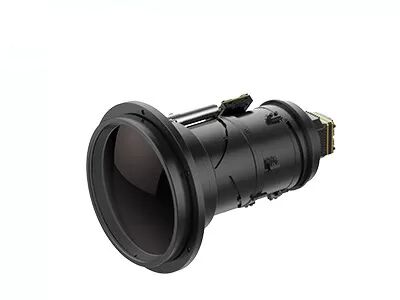

| Highlight | 50pin HRS Interface Camera Core,Animal Observation Uncooled Camera Core |
||
Product Description
Uncooled Thermal Imaging Camera Module 640x512 12μm for Security Surveillance
Product Overview
The iSE612 is an uncooled thermal imaging module from SensorMicro, featuring advanced shutterless infrared technology for superior performance in security surveillance and industrial applications.
Powered by self-developed 640×512/12μm ceramic-packaging ApexCore thermal detector, the iSE612 shutterless infrared camera core features NETD≤20mK. It removes shutter-related stutter and noise, supports super-resolution and multiple interfaces. With tiny size and light weight, it is a reliable thermal module for machine vision, industrial inspection and professional surveillance systems.
Key Features
- Smooth, Stable Operation: No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems
- High Performance: Utilizes ApexCore ceramic-packaging detector with NETD≤20mK for exceptional thermal sensitivity
- Compact Design: Dimensions as small as 25.4×25.4×22.7mm, bare core weight ≤26±1.5g for flexible integration
- Advanced Features: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, and one-click calibration
- Versatile Compatibility: Compatible with multiple optical lenses, Micro OLED displays, and various interface options
Technical Specifications
| Model | iSE612 | |
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 640×512 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD | ≤20mK | |
| Image Processing | ||
| Digital Frame Rate | 50Hz | |
| Start-up Time | 6s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB2.0 | |
| Digital Video Interface | DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE | |
| Extension Components | USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size(mm) | 25.4×25.4×22.7mm | φ36×24.3mm |
| Bare Core Weight(g) | 26±1.5 | 28±1.5 |
| Optical Lens | Fixed Focus Athermal: 4.8mm/9.1mm/13mm/19mm | Fixed Focus Athermal: 25mm/35mm/50mm/70mm/100mm Manual Focus: 25mm/35mm/50mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 15~75mm/20~100mm/28~90mm/30~150mm/30~180mm/25~225mm |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 1500g@0.4ms |
| Vibration | 5.35g, Random Vibration, 3-axis | |
| Shutter Components | Optional | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Certification | ROHS2.0/REACH | |
Industrial Applications
The iSE612 thermal camera core is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and various professional surveillance systems.
About SensorMicro
Our Vision: To push the boundaries of sensing and transform the way people connect with the world around them.
Our Mission: To harness the power of infrared sensing technology to transform industries worldwide, enabling smarter decisions, safer environments, and a more connected future.
Our Value: To create advanced infrared technology that makes the world a better place.
Frequently Asked Questions
Classification of Infrared Focal Plane Arrays
Infrared focal plane arrays are classified by cooling method into cooled and uncooled thermal imaging detectors. Cooled FPA infrared detectors typically use Dewar bottle/quick start throttling refrigerator or Dewar bottle/Stirling cycle refrigerator systems. Uncooled FPA thermal IR detectors operate at room temperature and serve as the core of uncooled thermal imaging systems. The most common heat-sensitive materials include vanadium oxide (Vox) and amorphous silicon (a-Si), with vanadium oxide being the mainstream choice due to its high temperature resistance coefficient and superior thermal sensitivity.
