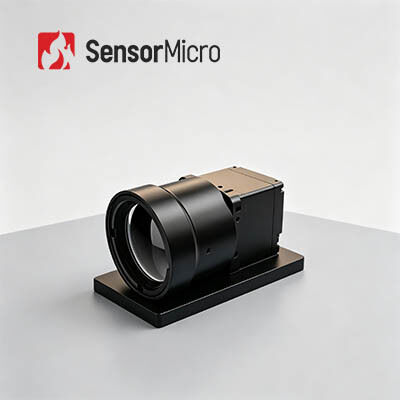

iSE612 Uncooled Thermal Imaging Camera Module 640x512 12μm with NETD ≤20mK for Animal Observation
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iSE612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Spectral Range | 8~14μm LW | Camera Lens | Multiple Available |
|---|---|---|---|
| Resolution | 640x512 / 12μm | Image Algorithm | NUC/DRC/DNS/DDE/SFFC |
| NETD | ≤20mK | Digital Frame Rate | 50Hz |
| Highlight | ADAS Thermal Imaging Camera Module,Plug in Uncooled Camera Module |
||
Product Description

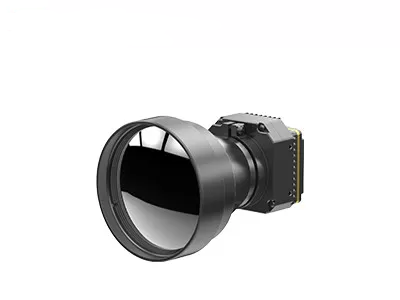

Uncooled Thermal Imaging Camera Module 640x512 12μm for Animal Observation
Product Overview
The iSE612 is an uncooled thermal camera module from SensorMicro's iSE series, specifically designed for animal observation applications. This shutterless infrared camera core utilizes ApexCore thermal detector technology with NETD≤20mK, offering compact dimensions, rich functionality, and exceptional cost-performance ratio.
Key Features
- Smooth, Stable Operation: No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems
- High Performance: Utilizes cost-effective ApexCore ceramic-packaging detector with NETD≤20mK
- Compact Design: Dimensions as small as 25.4×25.4×22.7mm, bare core weight ≤26±1.5g with space-saving structural design
- Advanced Features: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
- Flexible Integration: Compatible with multiple optical lenses and extension components for easy secondary development
Technical Specifications
| Model | iSE612 | |
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 640×512 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD | ≤20mK | |
| Image Processing | ||
| Digital Frame Rate | 50Hz | |
| Start-up Time | 6s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB2.0 | |
| Digital Video Interface | DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE | |
| Extension Components | USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size(mm) | 25.4×25.4×22.7mm | φ36×24.3mm |
| Bare Core Weight(g) | 26±1.5 | 28±1.5 |
| Optical Lens | Fixed Focus Athermal: 4.8mm/9.1mm/13mm/19mm | Fixed Focus Athermal: 25mm/35mm/50mm/70mm/100mm Manual Focus: 25mm/35mm/50mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 15~75mm/20~100mm/28~90mm/30~150mm/30~180mm/25~225mm |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 1500g@0.4ms |
| Vibration | 5.35g, Random Vibration, 3-axis | |
| Shutter Components | Optional | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Certification | ROHS2.0/REACH | |
Industrial Applications
The iSE612 thermal camera module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and Animal Observation applications.
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. The company specializes in providing high-performance uncooled and cooled thermal imaging detectors along with professional application expertise.
Designed for clarity, sensitivity, and efficiency, SensorMicro products integrate seamlessly into diverse systems, empowering next-generation imaging and sensing applications across industries. Their detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products.
Frequently Asked Questions
Advantages of Optical Gas Imaging Technology
- Time-saving & Efficient: Supports large-scale real-time detection, rapid leak location without interrupting production
- Long Range Detection: Operates from safe distances in dangerous and complex areas with non-contact, non-destructive testing
- Easy Analysis: Intuitive imaging with instant storage and convenient analysis capabilities
- Multi-function Inspection: Detects a variety of gases with excellent remote temperature measurement functionality
