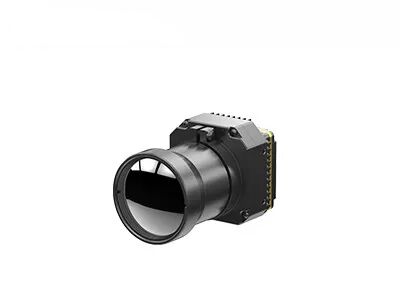

PAL/NTSC Uncooled Thermal Camera Core With 1~8X Continual Zoom
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Resolution||640x512 / 17μm||Camera Lens||Multiple Available|
|Spectral Range||8~14μm LW||Size||44.5x44.5x33.6mm|
NTSC Uncooled Thermal Camera Core,
8X Continual Zoom Thermal Camera Core
640x512 / 17μm Uncooled Thermal Imaging Camera Module for Outdoors, Animal Observation

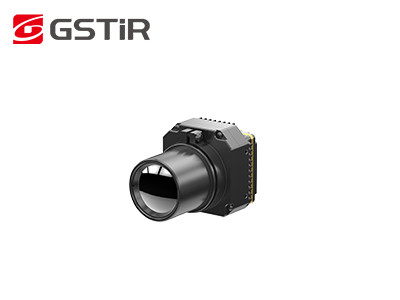

PLUG617 is one of the PLUG series uncooled thermal camera sensor module developed by Global Sensor Technology (GST).
Consisted of 640x512 / 17µm uncooled thermal camera sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG617 LWIR camera module provides clear image and superior performance.
PLUG series uncooled infrared modules are specially developed for various personalized observation requirements, which provide various standard industrial interfaces and infrared lens options to meet specific integration requirements. Some professional thermal imaging solutions have been applied to many applications.
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability
|IR Detector Performance|
|Digital Zoom||1~8X Continual Zoom, Step Size 1/8|
|Image Display||Black Hot/White Hot/Pseudo Color|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||50pin_HRS Interface|
|Communication Mode||RS232-TTL, 115200bps|
|Typical Power Consumption||<1.2W|
|Operation Temperature||-40°C ~ +70°C|
|Storage Temperature||-45°C ~ +85°C|
|Vibration||Random Vibration 5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm
The PLUG617 thermal imager module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.
1. What is Infrared Detector Resolution
That is, the number of pixels of thermal imaging. The higher resolution means more observation and temperature measurement points, thus smaller target at longer distance can be observed and measured. Usually the resolution of infrared thermal imaging ranges from 256x192, 384x288, 640x512, 800x600, 1024x768, 1280x1024, etc. With higher resolution, the cost of detector will be more.
2. Field of View (FOV)
It refers to the two-dimensional field of view of the object space observed by the optical system of infrared thermal imager. Taking the horizontal FOV as an example, assuming that the detector array size is A×B, the pixel size is d, and the lens focal length is f, then the horizontal FOV angle θ=2×acrtan (A×d/2f).
After the detector array and pixel size are selected, the field of view only changes with the focal length of the optical system: with longer focal length, the field of view will be narrower; with shorter focal length, the field of view will be wider.
