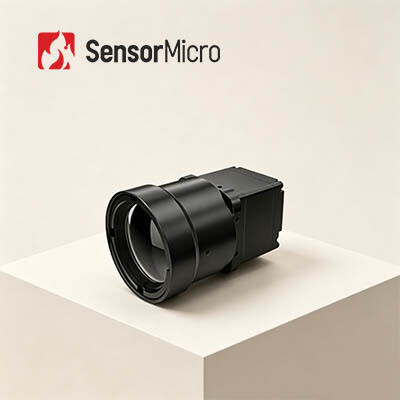

iSE612 Uncooled LWIR Thermal Camera Core with 640x512 Resolution 12μm Pixel Size and Shutterless Operation

  • iSE612 Uncooled LWIR Thermal Camera Core with 640x512 Resolution 12μm Pixel Size and Shutterless Operation
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE612
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Typical Power Consumption 0.8W@50Hz@23±3℃ Type Uncooled Infrared Module
Resolution 640x512 / 12μm NETD ≤20mK
Spectral Response 8μm ~ 14μm Digital Frame Rate 50Hz
Highlight

LWIR Camera Core 12uM

,

PLUG612 LWIR Camera Core
Leave a Message
Product Description

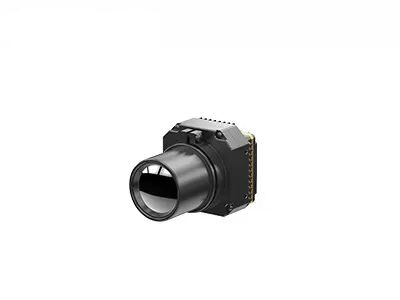

iSE612 Uncooled LWIR Thermal Camera Core 640x512 12μm with Clear Thermal Imaging
Product Overview

The iSE612 thermal imaging core combines a 640x512/12μm uncooled thermal sensor with comprehensive optical components, signal processing circuitry, and advanced image processing algorithms to deliver exceptional image clarity and superior performance.

This infrared camera core eliminates the need for shutter calibration, effectively resolving issues of stuttering and noise during observation. Designed for diverse user requirements, the iSE612 supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, electronic zoom, and other advanced features. It offers multiple video interfaces and lens options for easy integration, with SWaP-optimized design delivering outstanding image quality in space-constrained applications.

Main Features
  • Smooth, Stable, and High Cost-effective: No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems. Utilizes high cost-effective ApexCore ceramic-packaging detector with NETD≤20mK.
  • Compact and Lightweight, Flexible for Integration: Dimensions as small as 25.4×25.4×22.7mm, bare core weight ≤26±1.5g. Space-saving structural design allows flexible system layout and integration.
  • Rich Features for Seamless Integration: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with multiple optical lenses and extension components for easy secondary development and system customization.
Product Specifications
Model iSE612
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤20mK
Image Processing
Digital Frame Rate 50Hz
Start-up Time 6s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Electrical
Standard External Interface 50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE
Extension Components USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage 2.7V~5.3V
Typical Power Consumption 0.8W@50Hz@23±3℃
Mechanical/Lens
Bare Core Size(mm) 25.4×25.4×22.7mm φ36×24.3mm
Bare Core Weight(g) 26±1.5 28±1.5
Optical Lens Fixed Focus Athermal: 4.8mm/9.1mm/13mm/19mm Fixed Focus Athermal: 25mm/35mm/50mm/70mm/100mm
Manual Focus: 25mm/35mm/50mm
Motorized Lens: 75mm/100mm/150mm
Continuous Zoom: 15~75mm/20~100mm/28~90mm/30~150mm/30~180mm/25~225mm
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times 1500g@0.4ms
Vibration 5.35g, Random Vibration, 3-axis
Shutter Components Optional
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Certification ROHS2.0/REACH
Industrial Applications
Industrial Vision Firefighting and Rescue Security Surveillance Outdoor Observation Machine Vision Consumer Electronics
Our Advantages
  • Complete Documentation: Product manuals, setup guides, and selection references for immediate implementation.
  • Development & Testing Assistance: Sample integrated testing, performance evaluation, and parameter verification services.
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
  • Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues.
  • Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What is Infrared Detector Resolution?
Infrared detector resolution refers to the number of pixels in thermal imaging. Higher resolution means more observation and temperature measurement points, enabling detection of smaller targets at longer distances. Common infrared thermal imaging resolutions range from 256x192, 384x288, 640x512, 800x600, 1024x768, to 1280x1024. Higher resolution typically increases detector cost.
What is Field of View (FOV)?
Field of View refers to the two-dimensional field of view of the object space observed by the infrared thermal imager's optical system. Taking horizontal FOV as an example, with detector array size A×B, pixel size d, and lens focal length f, the horizontal FOV angle θ=2×arctan(A×d/2f). After selecting the detector array and pixel size, the field of view changes only with the optical system's focal length: longer focal length results in narrower field of view, while shorter focal length provides wider field of view.
